2.5T BF Pump Iron Steel Wheel 685x1500mm Hand Pallet Truck
Key Features & Benefits
-

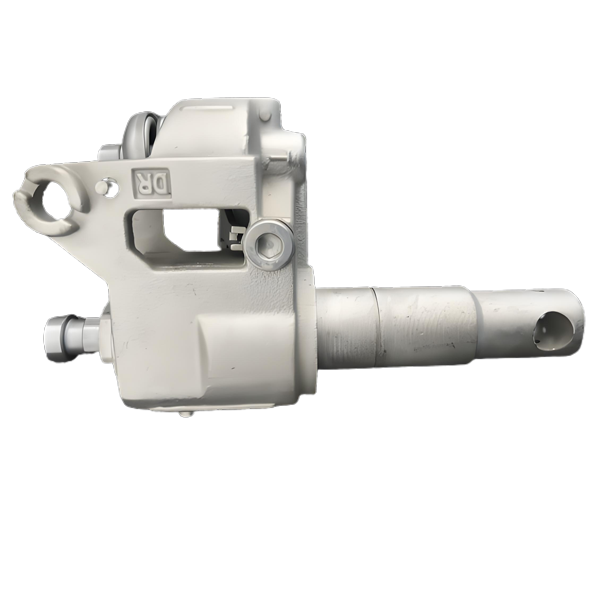

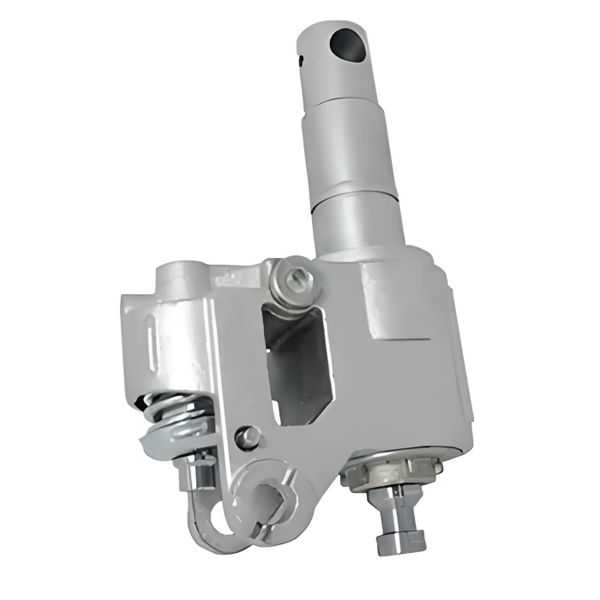

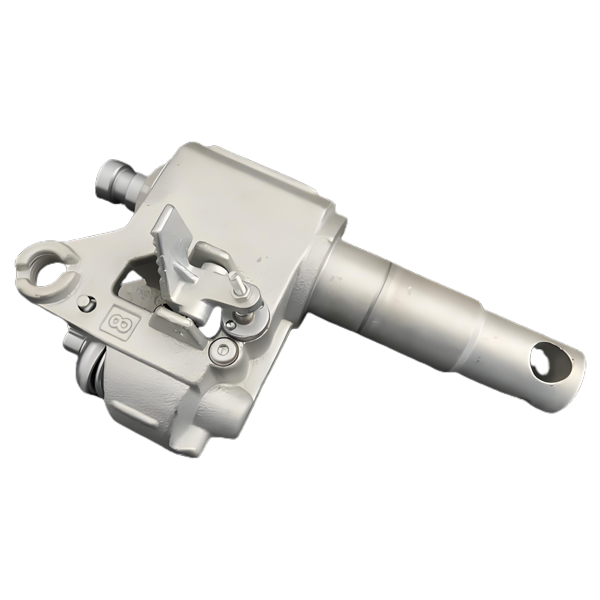

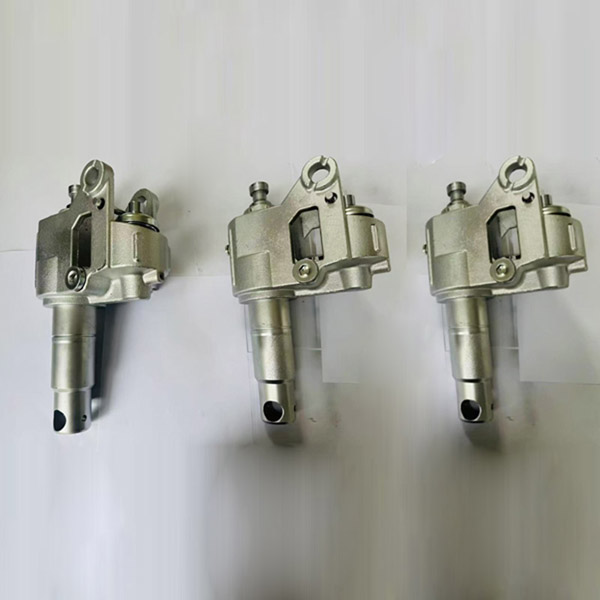

Advanced BF Hydraulic Pump System
Our specialized BF series hydraulic pump utilizes precision-machined components and multi-stage sealing technology to prevent leakage and ensure consistent lifting performance. The pump maintains optimal pressure throughout operation, enabling smooth 2.5-ton capacity handling with minimal operator effort. -
Industrial-Grade Iron Steel Wheel Construction
Unlike standard polyurethane or nylon wheels, our forged iron steel wheels provide uncompromising resistance to impact, abrasion, and deformation. Perfect for environments with rough surfaces, debris, and heavy-impact loading scenarios. -
Reinforced Fork Design
The 685x1500mm forks are constructed from high-tensile strength steel with reinforced cross-bracing, eliminating flex under maximum load capacity. This design ensures long-term structural integrity and operational safety. -
Ergonomic Operation System
Features a three-position control handle with optimized leverage ratio, reducing operator fatigue during extended use. The neutral position allows for effortless maneuvering while the lowered position provides secure transportation. -
Minimum Maintenance Requirement
Pre-filled with high-grade hydraulic oil and featuring sealed bearing units, this pallet truck requires minimal maintenance even in high-frequency operation cycles.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | ZP-BF25-6851500 |
| Load Capacity | 2.5 Tons (2,500 kg) |
| Hand Pallet Truck Hydraulic Pump Type | BF Series |
| Fork Dimensions | 685 × 1500 mm |
| Lowered Height | 83 mm |
| Lifting Height | 195 mm |
| Wheel Material | Forged Iron Steel |
| Frame Construction | Reinforced Steel Plate |
| Handle | 3-Position Control (Lift/Neutral/Lower) |
| Net Weight | 108 kg |
| Standard Color | Industrial Orange/Blue |
Industry Applications
This heavy-duty pallet truck is specifically designed for challenging material handling scenarios:
-
Steel manufacturing and metal processing facilities
-
Heavy machinery manufacturing plants
-
Construction material warehouses
-
Logistics centers with continuous high-capacity operations
-
Port container loading/unloading operations
Customization Options
We understand that different applications require specific solutions. Available customization includes:
-
Load capacity upgrades (3.0T/5.0T configurations)
-
Special fork dimensions (length & width variations)
-
Alternative wheel materials (Polyurethane, Nylon)
-
Custom color schemes and branding options
-
Specialized hydraulic oil for extreme temperatures
Quality Assurance
As a professional manufacturer of Hand Pallet Truck Hydraulic Pump components and complete assemblies, we maintain strict quality control throughout the production process. Each BF pump undergoes individual pressure testing, while every completed pallet truck receives comprehensive performance verification before shipment.
Why Choose Our 2.5T BF Pump Pallet Truck?
-
Superior Component Quality: Direct manufacturing of critical components including the Hand Pallet Truck Hydraulic Pump ensures reliability and performance consistency.
-
Durability Focus: Every element from the iron steel wheels to the reinforced frame is designed for extended service life in demanding conditions.
-
Technical Support: Comprehensive after-sales support including installation guidance, maintenance documentation, and spare parts availability.
-
Competitive Manufacturing: Direct factory pricing with no intermediary margins, providing exceptional value for professional-grade equipment.
