Pallet Jack Parts

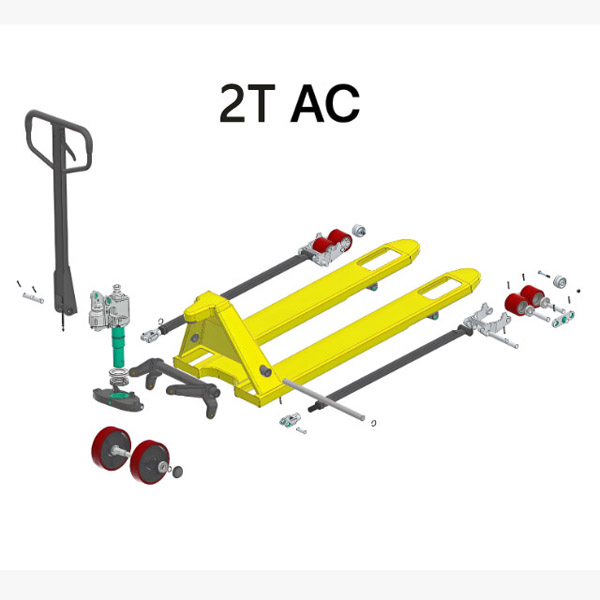

2T AC Pump Welded PU Wheel 540x1150mm Narrow Fork Pallet Truck
Key Features
-
Narrow Fork Design – 540mm width allows easy access to tight spaces and standard/narrow pallets.
-

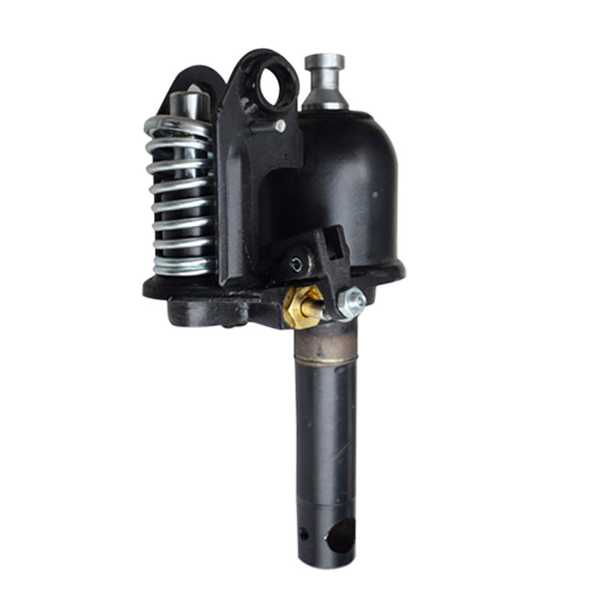

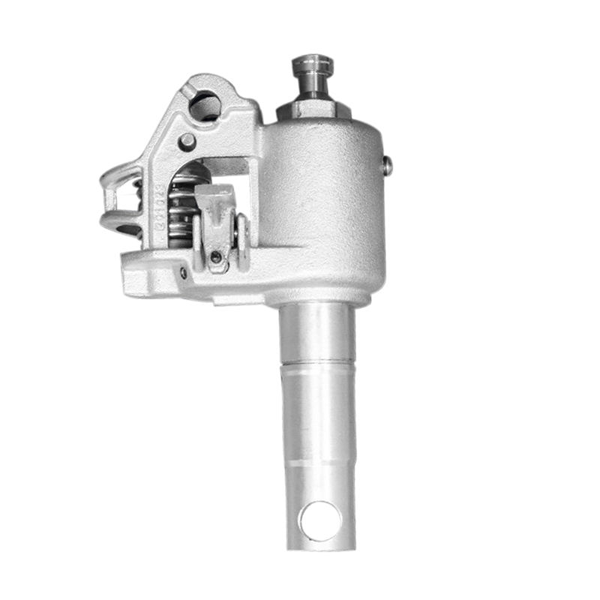

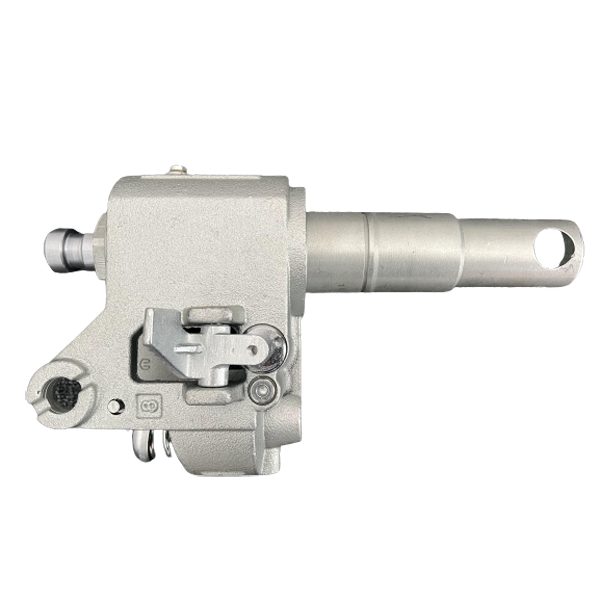

Heavy-Duty AC Hydraulic Pump – Delivers consistent lifting power with leak-resistant construction.
-
Reinforced Welded Steel Body – Provides exceptional structural integrity under full 2-ton loads.
-
Soft Polyurethane (PU) Wheels – Ensure quiet operation and protect floors from scratches and damage.
-
Three-Position Control Handle – Enables smooth lifting, lowering, and neutral operation with minimal effort.
-
Pre-filled & Ready to Use – Shipped with hydraulic oil installed, requiring no initial setup.
Technical Specifications
| Specification | Details |
|---|---|
| Capacity | 2 Tons |
| Pump Type | AC Hydraulic Pump |
| Fork Width | 540 mm (Narrow) |
| Fork Length | 1150 mm |
| Fork Height (Lowered) | 51 mm |
| Frame Construction | Welded Steel |
| Wheel Material | Polyurethane (PU) |
| Coating | Powder-coated, Custom Colors Optional |
| Applications | Warehousing, Retail, Logistics, Factories |
| Manufacturer | Shanghai ZZ Industrial Co., Ltd. |
Customization Options
Tailor this narrow fork pallet truck to fit your exact operational needs:
-
Load Capacity: 2T, 2.5T, 3T
-
Pump Models: AC, BF, DF, DB
-
Fork Dimensions: Custom widths and lengths available
-
Wheel Types: PU, Nylon, or Steel wheels
-
Branding & Colors: OEM/ODM services with custom color matching
Why Choose Our Narrow Fork Pallet Truck?
-
Optimized for space-limited environments – ideal for retail backrooms and compact warehouses.
-
Built with the same robust AC pump technology trusted by global industrial users.
-
Fully customizable to match your workflow and branding.
-
Backed by technical support and pre-shipment inspection.
Company Profile
As a leading manual pallet truck component manufacturer in China, Shanghai ZZ Industrial specializes in high-performance hydraulic pumps and pallet jack assemblies. Our products are used by companies worldwide, including several Fortune 500 partners. With a focus on quality control and customer-driven design, we ensure every pallet truck meets the highest standards of safety and efficiency.
