5-Ton Reinforced Connection Plate for Manual Hydraulic Pallet Truck

5-Ton Reinforced Connection Plate For Manual Hydraulic Pallet Truck

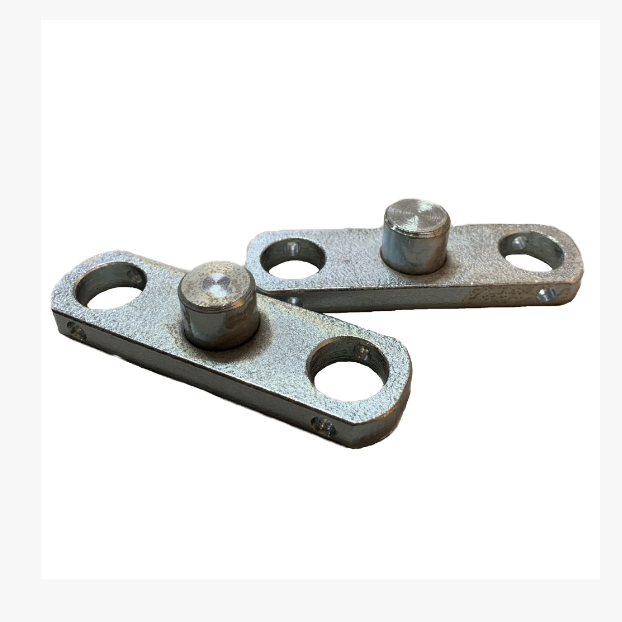

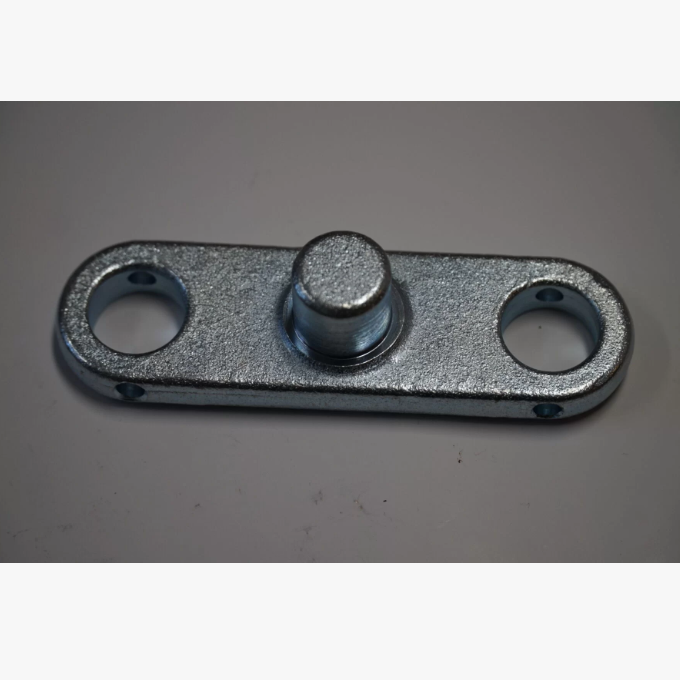

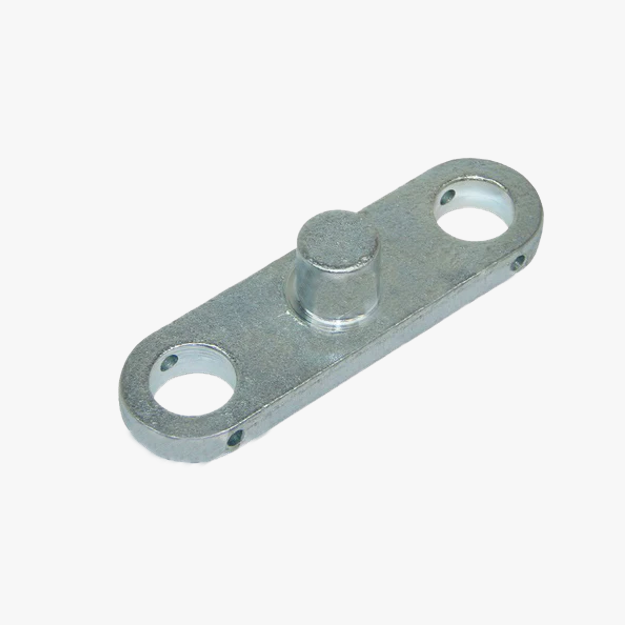

The 5-Ton Reinforced Connection Plate from Shanghai ZZ Industrial Company is a critical load-bearing component engineered to restore and enhance the structural integrity of manual hydraulic pallet trucks. Designed for heavy-duty applications, this plate ensures secure linkage between the hydraulic system and the fork assembly, providing unmatched strength, stability, and safety under loads up to 5 tons. It is the ideal replacement or upgrade part for maintenance, repair, and performance enhancement in demanding material handling environments.

Key Advantages

Exceptional Load Capacity – Manufactured to reliably support 5 tons, making it suitable for reinforced and high-capacity pallet jacks.
Premium Steel Construction – Fabricated from high-grade, reinforced carbon steel with precision welding for maximum durability and resistance to bending or fatigue.
Heat-Treated & Stress-Relieved – Undergoes advanced heat treatment to enhance toughness and prevent cracking under repeated heavy loads.
Precision Machined Holes – Ensures perfect alignment and easy installation with existing hydraulic pump and fork mounting points.
Corrosion-Resistant Finish – Coated with industrial-grade anti-rust treatment, suitable for use in warehouses, cold storage, and humid environments.
Compatibility – Designed to fit a wide range of manual hydraulic pallet jack models, especially those with AC, BF, DF, or DB pump systems.
Safety & Reliability – Reduces the risk of component failure, promoting operator safety and minimizing downtime.

Technical Specifications

Specification	Details
Part Name	Reinforced Connection Plate
Load Capacity	5 Tons (11,000 lbs)
Material	Reinforced Carbon Steel (Q235B or equivalent)
Thickness	20 mm
Surface Treatment	Anti-rust paint / Powder-coated optional
Hole Pattern	Standardized for most manual pallet trucks
Compatibility	AC, BF, DF, DB pump pallet jack models
Application	Warehouse, logistics, manufacturing, port operations
Certification	ISO quality manufacturing standards
Origin	Shanghai, China

Customization & Options

ZZ Industrial offers tailored connection plate solutions to match your specific equipment and operational requirements:

Load Capacity Options: 2T, 3T, 5T, 10T
Material Grades: Carbon steel, alloy steel, or galvanized steel
Thickness Customization: 15mm to 30mm available
Hole Configuration: Custom drilling and threading per model
Finish Options: Zinc-plated, painted, or powder-coated in custom colors
OEM & ODM Services: Branding and packaging available for bulk orders

Supplier Highlights

Specialized Manufacturer of hand pallet truck parts with in-house R&D and precision machining facilities.
Trusted by Global Distributors – supplied to partners in Europe, North America, and South America.
Stringent Quality Control – every plate undergoes load testing and dimensional inspection.
Technical Support & CAD Drawings provided for easy integration and installation guidance.
Competitive Pricing with direct factory supply, ensuring cost-effective maintenance solutions.

Why Choose ZZ Industrial for Pallet Truck Parts?

With deep expertise in manual hydraulic pallet truck components, Shanghai ZZ Industrial is your reliable partner for high-performance, durable replacement parts. Our 5-Ton Reinforced Connection Plate is engineered to exceed industry standards, deliver long service life, and ensure operational safety in the most challenging environments. Whether for repair, upgrade, or custom assembly, we provide parts that keep your equipment—and your business—moving.
