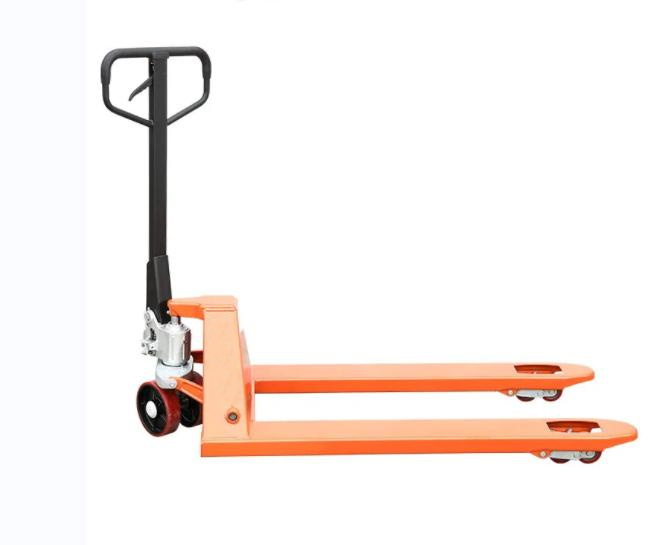

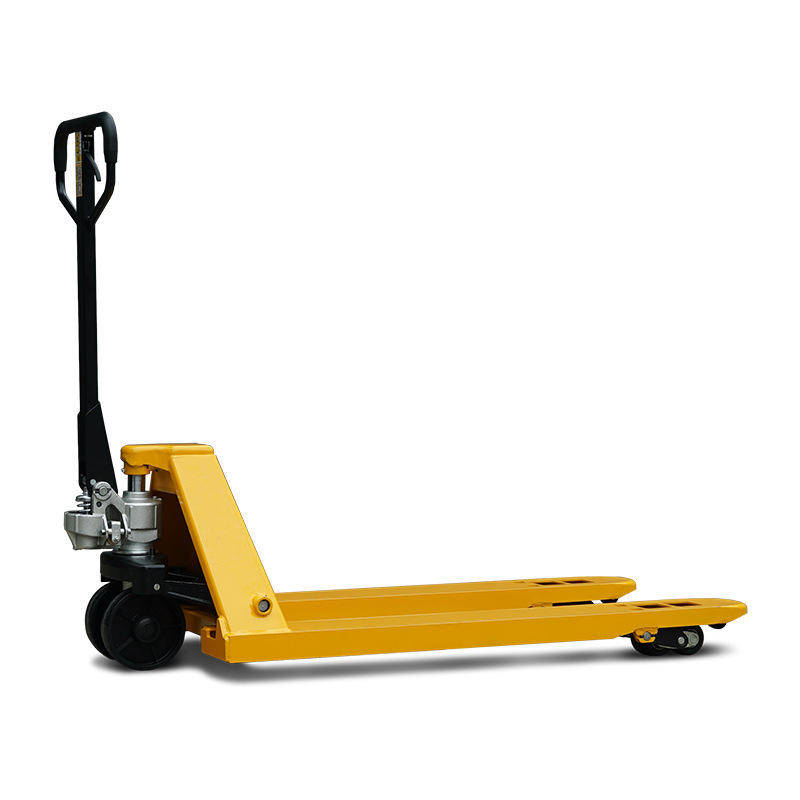

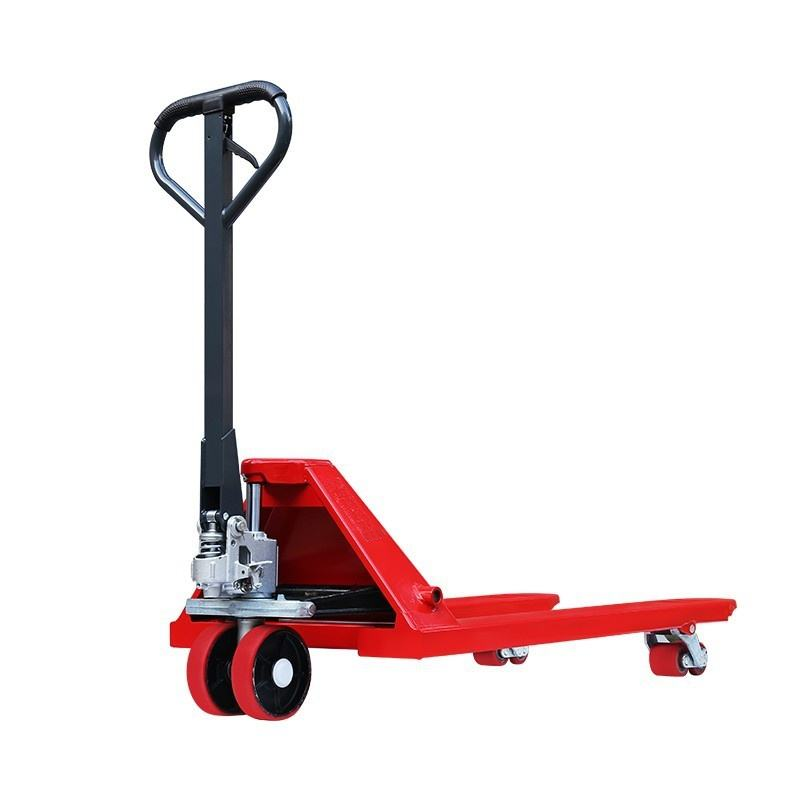

Extended Fork Heavy-Duty Manual Pallet Truck

The Extended Fork Heavy-Duty Manual Pallet Truck is engineered for handling oversized, long, or unevenly balanced loads with exceptional stability and control. Designed with reinforced extended forks and a rugged hydraulic pump system, this pallet jack is ideal for industries such as lumber, construction, metalworking, and large-item logistics where standard pallet jacks fall short. Built for strength and endurance, it ensures reliable performance under demanding conditions.

Send Inquiry

Key Features & Benefits

Extended Fork Design – Specially lengthened forks provide secure support for long or oversized loads, reducing the risk of tipping or imbalance.
Heavy-Duty Construction – Reinforced welded steel frame and high-grade components support increased stress and frequent heavy lifting.
Smooth Hydraulic Operation – Equipped with a high-performance manual hydraulic pump for consistent lifting and lowering, even under full load.
Enhanced Maneuverability – Large polyurethane (PU) wheels offer smooth rolling over uneven surfaces while protecting floors from damage.
Operator-Focused Design – Ergonomic handle with intuitive lift/lower/neutral positions reduces fatigue and improves safety during extended use.
Minimal Maintenance – Pre-filled and sealed hydraulic system ensures ready-to-use operation with long service intervals.

Technical Specifications

Specification	Details
Load Capacity	5 Tons (5000 kg)
Fork Type	Extended, Reinforced Steel
Fork Width	685 mm
Fork Length	1800 mm / 2000 mm / 2200 mm
Lowered Fork Height	55 mm
Frame Material	Heavy-Duty Welded Steel
Wheel Type	Polyurethane (PU) – Silent & Floor-Friendly
Hydraulic Pump	Manual Heavy-Duty Pump
Finish	Powder-Coated, Anti-Corrosion Treatment
Suitable Industries	Lumber, Metal, Construction, Large-Scale Warehousing

Customization Services

We offer tailored solutions to match your specific material handling needs:

Load Options: 5T、Above 5T
Fork Lengths: Custom lengths up to 2500 mm available
Wheel Selection: PU, Nylon, or Steel wheels
Pump Variants: Standard, Low-Profile, or High-Speed pumps
Color & Branding: Powder-coating colors and OEM labeling supported

Why Partner With Us?

Specialized Manufacturer: Focused on heavy-duty and extended forklift solutions with in-house design and testing.
Global Export Experience: Proven track record supplying to industrial markets in Europe, North America, and Asia.
Quality Assurance: Every unit undergoes rigorous load and performance testing before shipment.
Technical Support: Installation guides, video tutorials, and responsive after-sales service.
