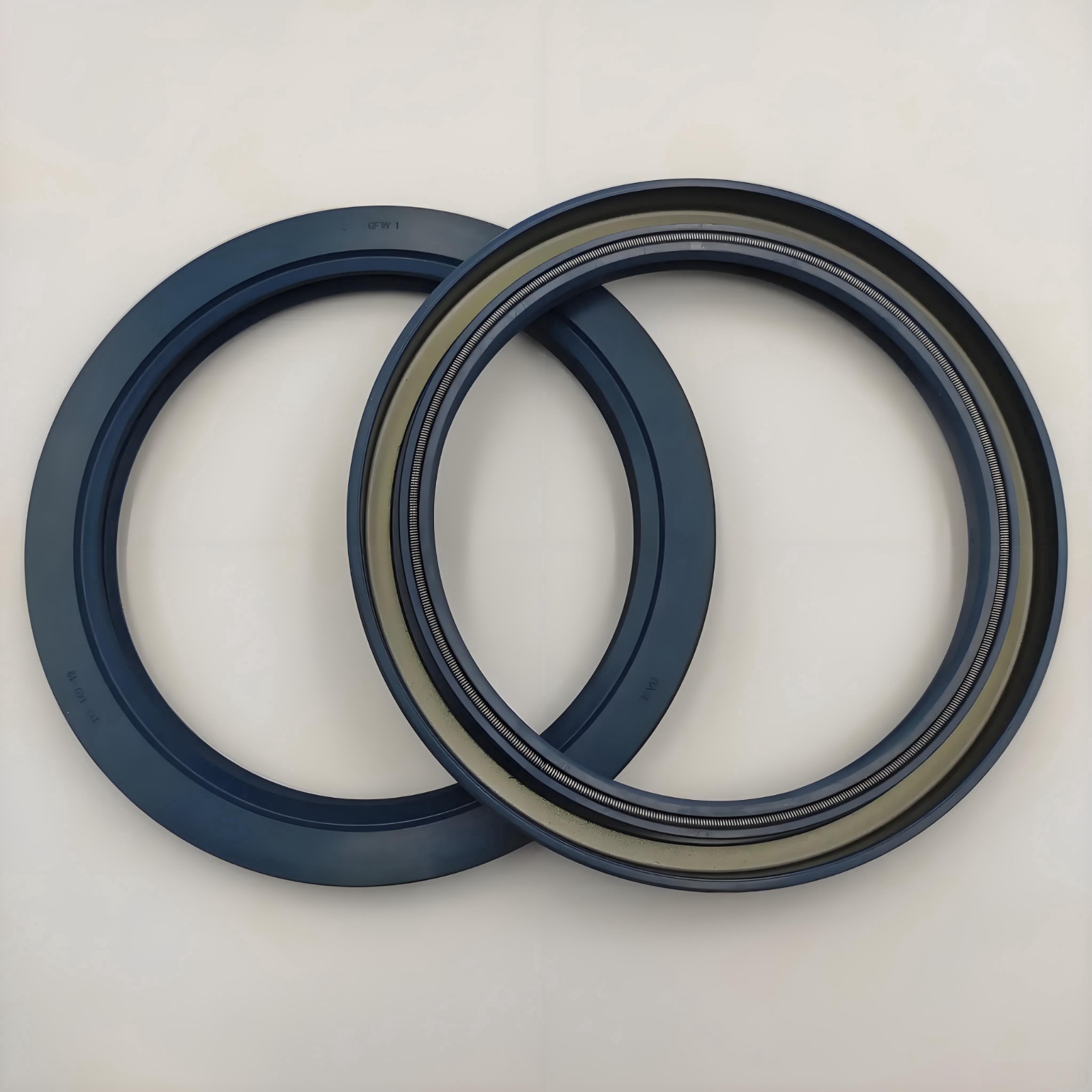

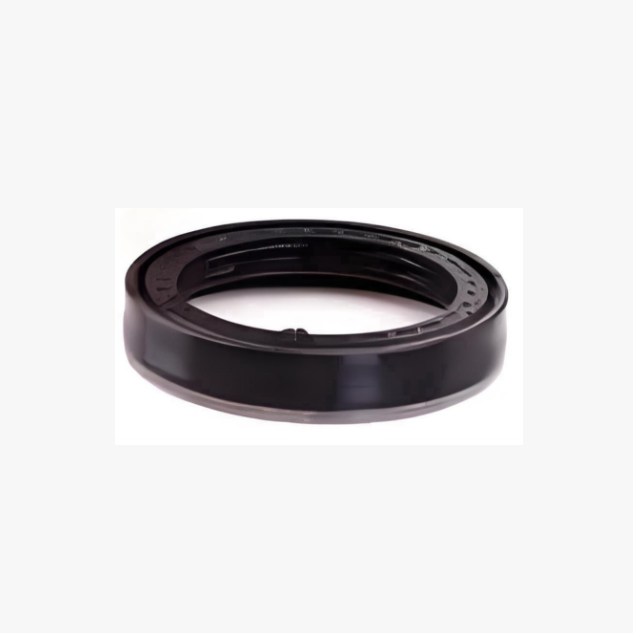

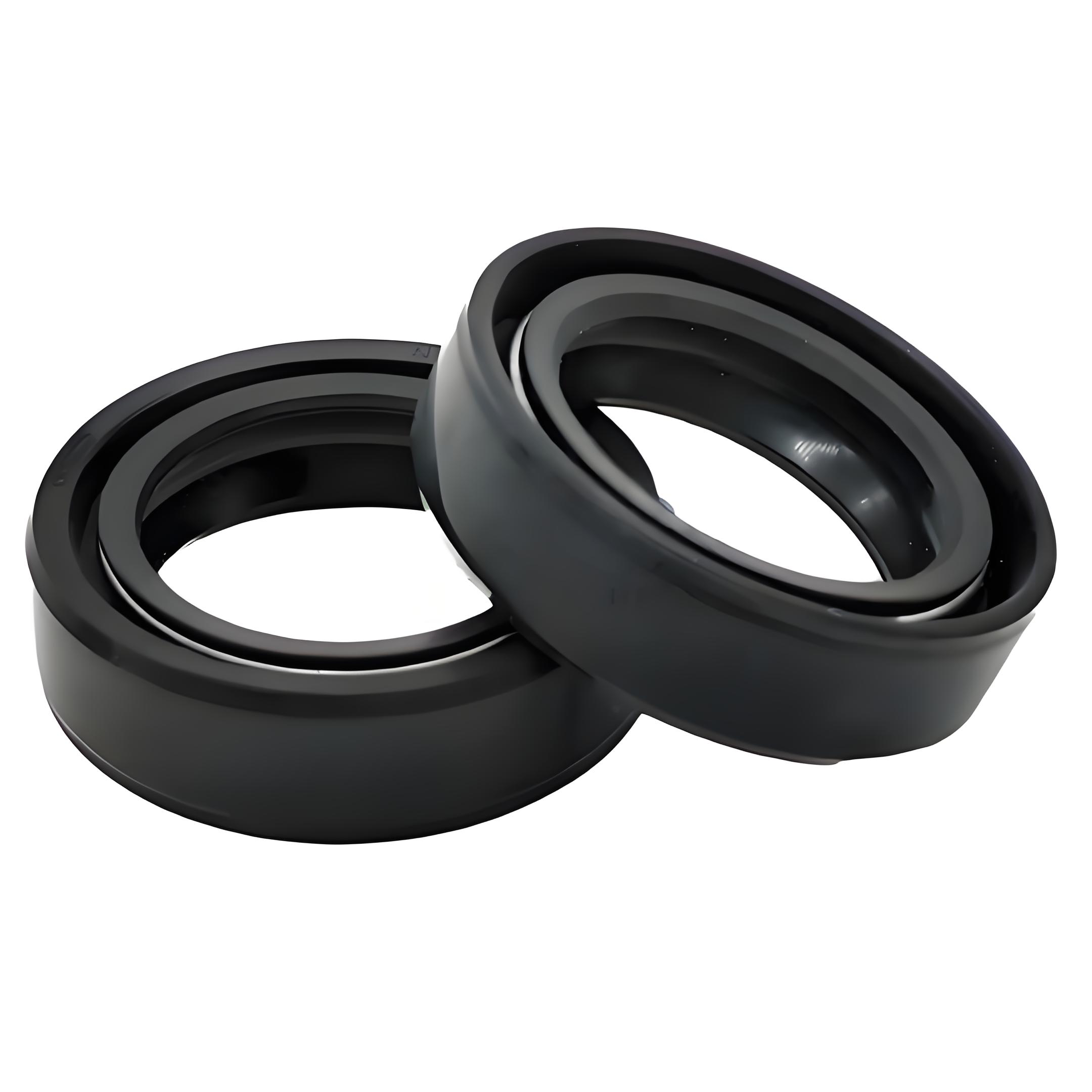

Steer Wheel Rotary Oil Seal - Manual Pallet Truck
Key Advantages
-
Enhanced Seal Integrity --- Features a dual-lipped design with a garter spring for consistent radial pressure, ensuring zero leakage of grease and effective exclusion of contaminants.
-
Premium Material Construction --- Manufactured from high-grade Nitrile Rubber (NBR) offering excellent resistance to abrasion, tears, and common hydraulic oils and greases.
-
Optimized for Steering Axles --- Specially designed to fit standard and heavy-duty manual pallet truck steer wheel assemblies, providing perfect compatibility and easy installation.
-
Reduces Maintenance & Downtime --- Protects the axle bearing from wear and corrosion, drastically reducing friction, heat buildup, and the frequency of costly repairs or replacements.
-
Wide Temperature Tolerance --- Maintains elasticity and sealing performance across a broad operating temperature range, ensuring reliability in various warehouse and industrial conditions.
Technical Specifications
| Specification | Details |
|---|---|
| Product Type | Rotary Shaft Oil Seal (Steer Wheel Application) |
| Seal Material | Nitrile Rubber (NBR) / Optional: Fluorocarbon (FKM) for high temperature |
| Metal Case | Carbon Steel, Zinc Plated |
| Spring | Stainless Steel Garter Spring |
| Shaft Diameter | 20 mm, 25 mm, 30 mm (Standard) / Custom sizes available |
| Housing Bore Diameter | 35 mm, 40 mm, 45 mm (Standard) / Custom sizes available |
| Width (Thickness) | 7 mm, 10 mm |
| Operating Temperature | -40°C to +100°C (NBR) / -20°C to +200°C (FKM Option) |
| Pressure Rating | Up to 0.5 MPa |
| Application | Manual Pallet Truck Steer Wheel Axle, Hydraulic Pump Shaft (ancillary) |
| Compatibility | Fits major brands of hand pallet jacks and pallet trucks. |
| Origin | Shanghai, China |
Customization & Options
As a specialist in pallet truck components, we offer tailored sealing solutions:
-
Material Selection: Standard NBR or high-performance FKM/Viton for extreme conditions.
-
Size & Dimensions: Fully customizable inner diameter (ID), outer diameter (OD), and width to match your specific axle and housing.
-
Color Coding: Rubber lip can be color-coded for easy material or size identification.
-
Packaging: Available in bulk or retail-ready packaging with your brand labeling.
-
Technical Support: Our engineering team can assist with seal selection and design for unique applications.
Supplier Highlights
-
Leading Component Specialist: Focused expertise in hand pallet truck spare parts and seals.
-
OEM/ODM Experience: Proven collaboration with global pallet jack manufacturers and Fortune 500 company supply chains.
-
Quality Assurance: 100% testing for dimensional accuracy and sealing performance before shipment.
-
Global Logistics: Efficiently exported to key markets including Israel, Canada, and Colombia.
-
Comprehensive Support: Provides product installation guides and video technical support for easy maintenance.
Why Choose Our Pallet Truck Oil Seals?
Shanghai ZZ Industrial Company is not just a manufacturer; we are your partner in maximizing equipment uptime. Our Steer Wheel Rotary Oil Seal embodies our commitment to precision, durability, and value. By choosing our seals, you invest in reduced friction, prolonged bearing life, and smoother operation for your entire fleet of manual pallet trucks, ensuring productivity and lowering your total cost of ownership.
