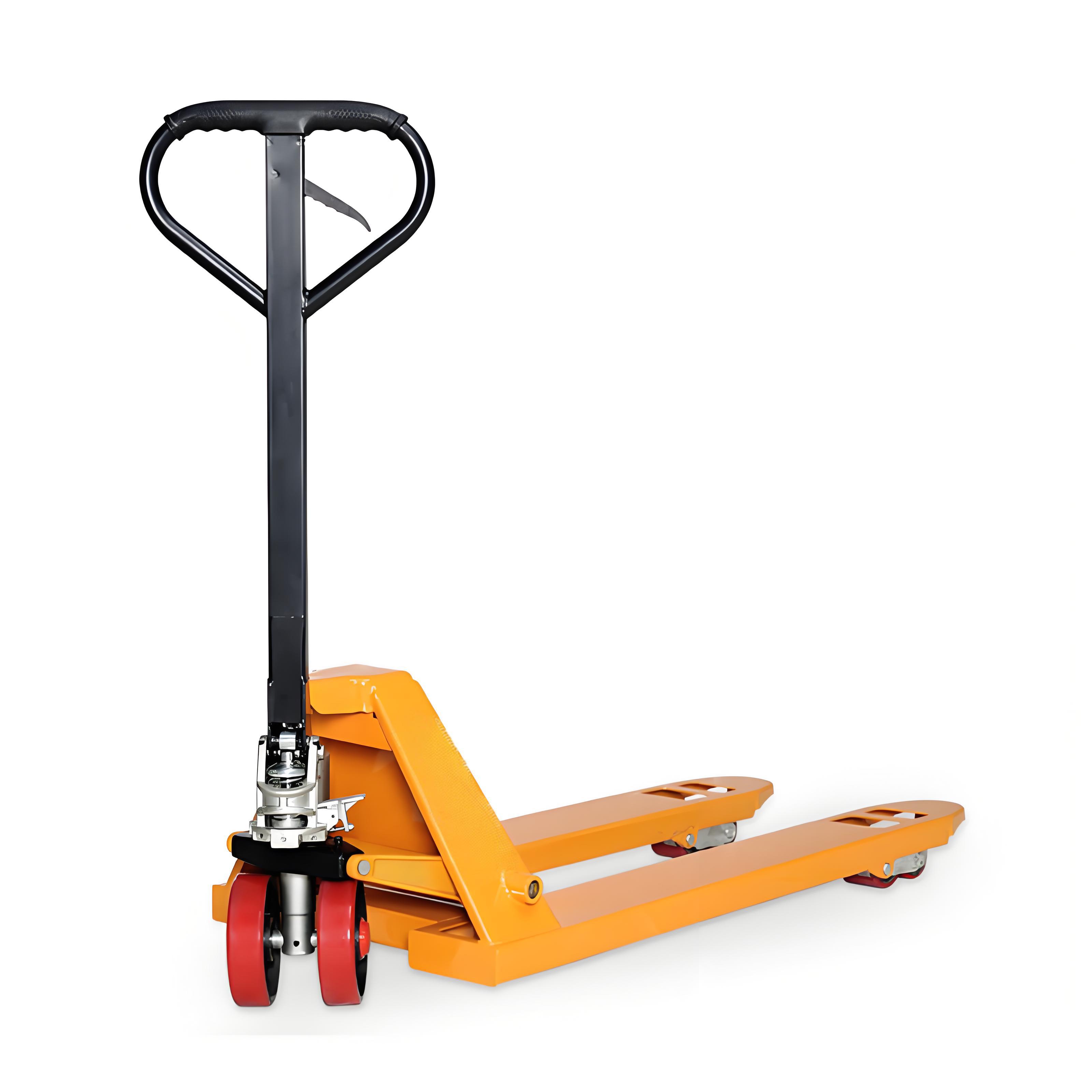

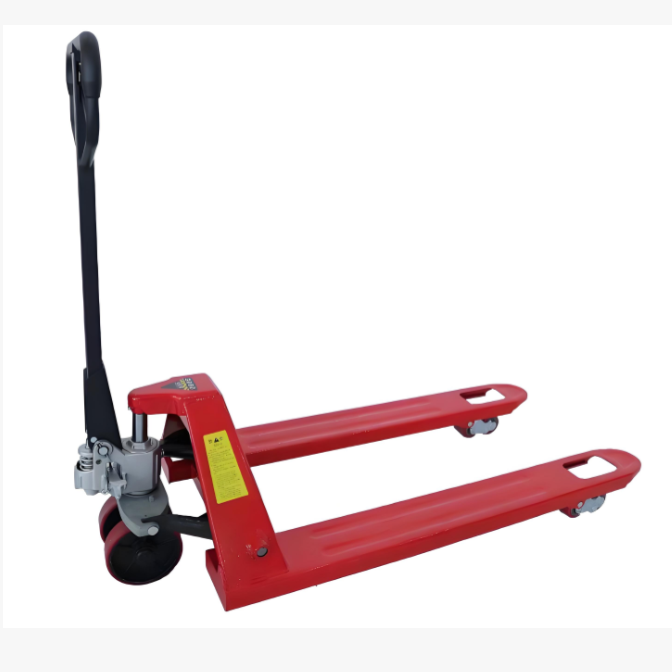

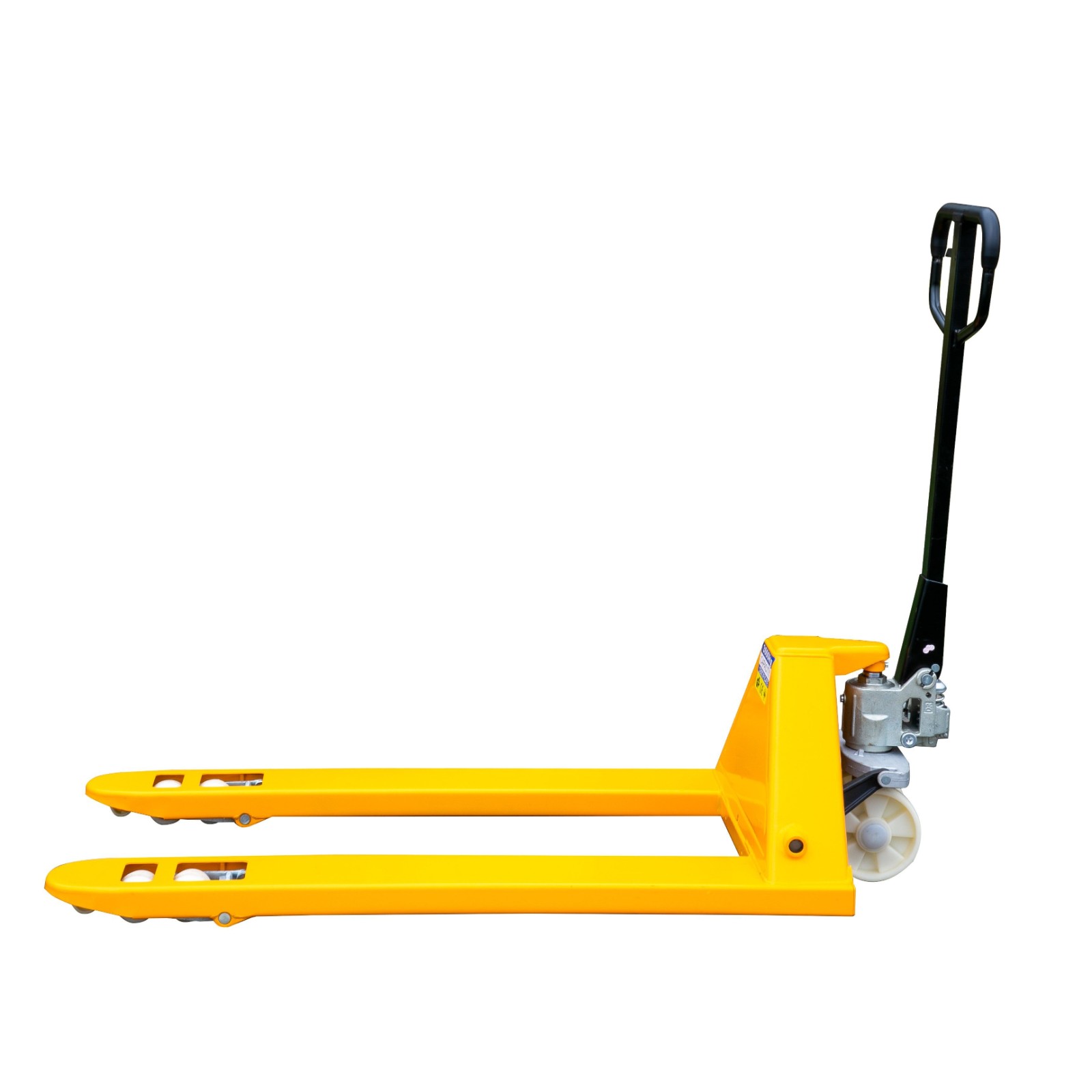

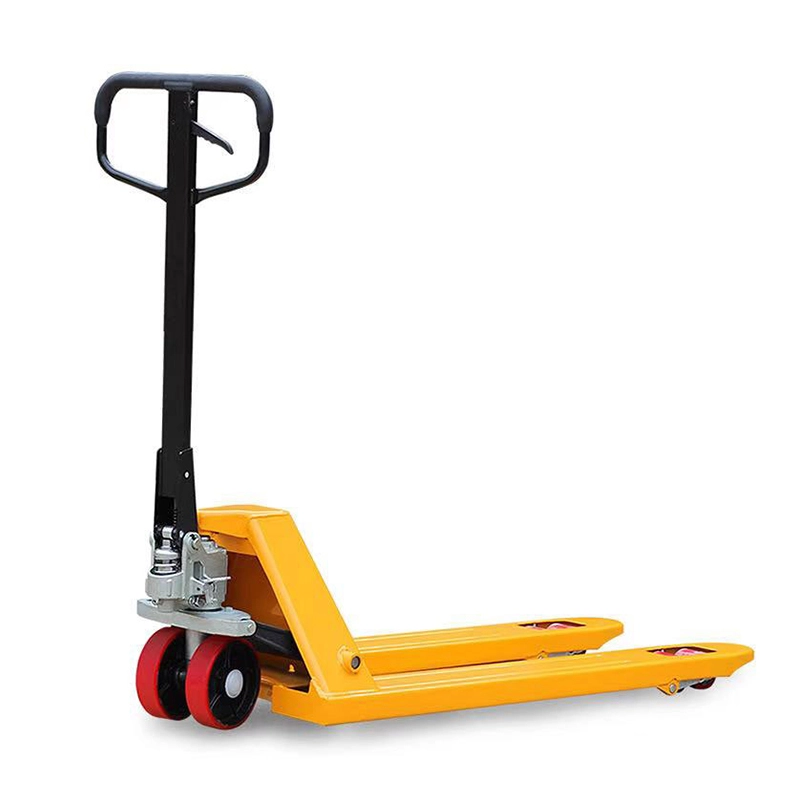

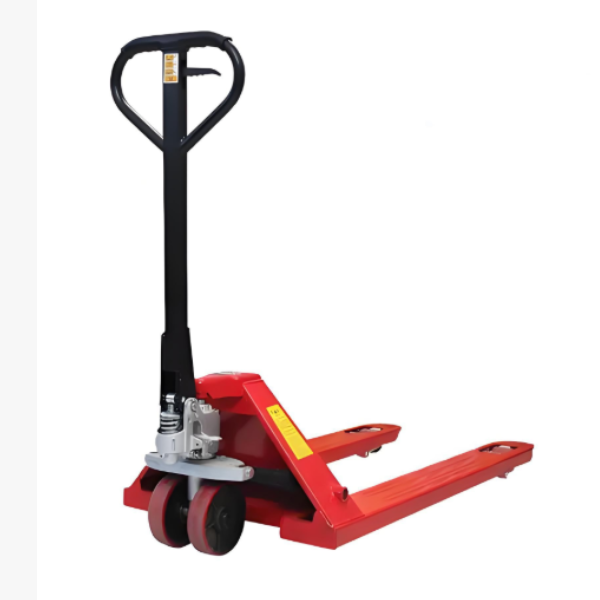

Ergonomic Low-Lift Manual Pallet Truck Chassis Frame

Ergonomic Low-Lift Manual Pallet Truck Chassis Frame

The Ergonomic Low-Lift Manual Pallet Truck Chassis Frame is a precision-engineered core component designed to enhance the performance, safety, and durability of manual pallet handling equipment. Manufactured with a focus on operator comfort and structural integrity, this chassis frame serves as the foundational backbone for low-lift pallet trucks, ensuring smooth operation, reduced physical strain, and extended service life in demanding industrial environments such as warehouses, distribution centers, and retail logistics.
Send Inquiry


Key Advantages


  • Low-Lift Ergonomic Design – Reduces initial lift height, minimizing operator bending and fatigue during prolonged use.

  • High-Strength Welded Construction – Fabricated from reinforced steel with robotic welding for consistent durability and load stability.

  • Optimized Weight Distribution – Engineered to improve balance and maneuverability, even under full capacity.

  • Universal Compatibility – Designed to integrate seamlessly with various pump systems, wheels, and fork assemblies.

  • Corrosion-Resistant Finish – Treated with anti-rust primer and powder coating for long-lasting protection in diverse working conditions.

  • Easy Maintenance & Assembly – Simplified structure allows for quick part replacement and reduced downtime.


Technical Specifications


Specification Details
Model Low-Lift Ergonomic Chassis Frame
Compatible Capacity Up to 2.5 Tons
Material Reinforced Steel, Welded Construction
Surface Treatment Sandblasted, Anti-Rust Primer, Powder Coating
Mounting Type Universal – Fits AC, BF, DF Pump Systems
Fork Attachment Standard 685mm & 540mm Width Options
Weight Approx. 18-22 kg (varies by configuration)
Finish Color Industrial Gray (Custom Colors Available)
Application Manual Pallet Trucks, Low-Lift Hand Jacks


Customization & Support


We offer tailored chassis frame solutions to match your specific equipment requirements:

  • Load Capacity Adaptation: 1.5T, 2T, 2.5T, 3T

  • Material Thickness & Reinforcement Options

  • Custom Powder Coating Colors to align with your brand

  • Pre-drilled Holes & Mounting Points for specific pump or wheel types

  • OEM/ODM Services – Branding and design adjustments available

  • Compatibility Guidance with various pallet truck models and components


Why Our Chassis Frame Stands Out


As a specialized manufacturer of hand pallet truck components, we combine advanced fabrication technology with ergonomic insight to produce chassis frames that are not only strong and reliable but also operator-friendly. Our frames are tested for load endurance, impact resistance, and fatigue performance, ensuring they meet the rigorous demands of daily material handling operations.
