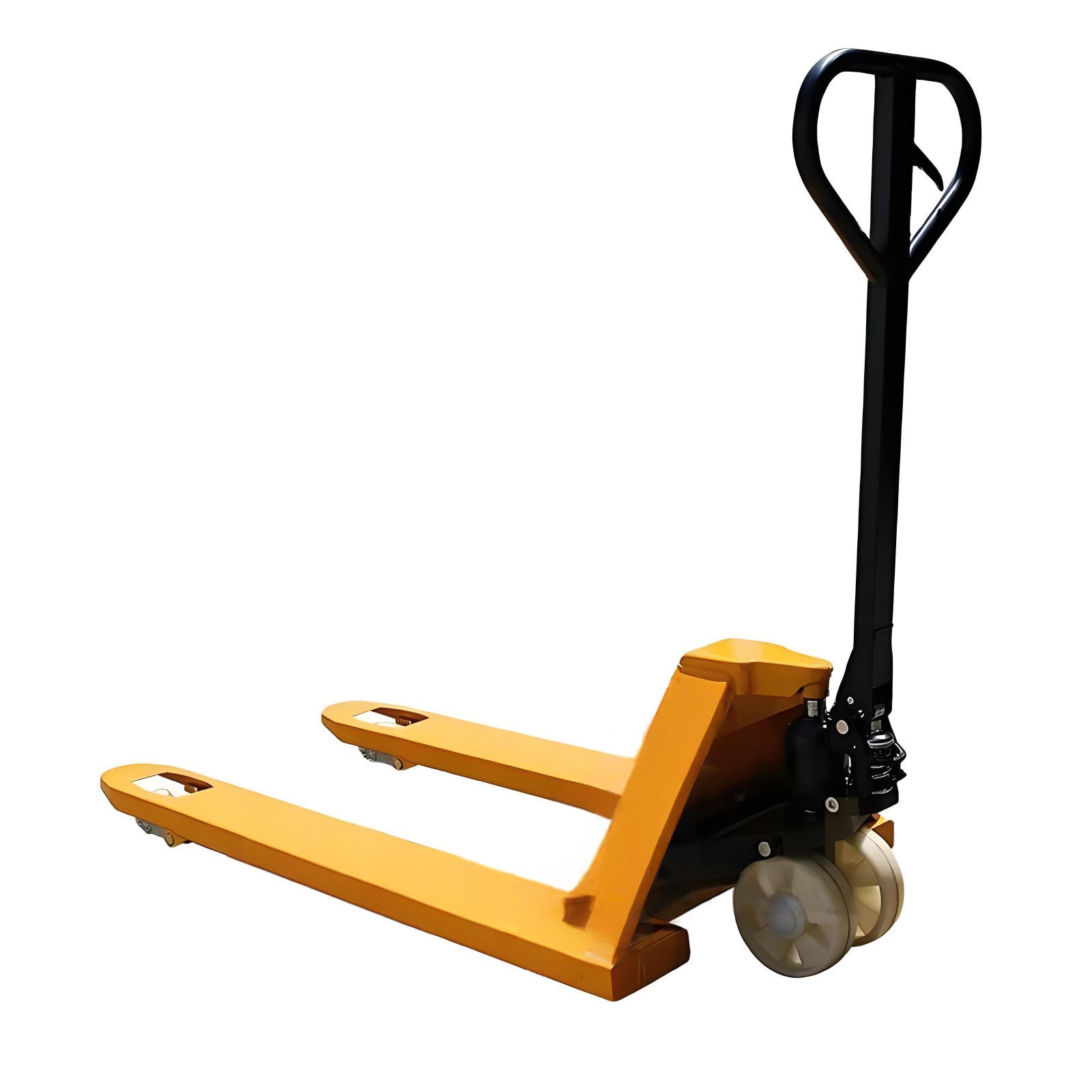

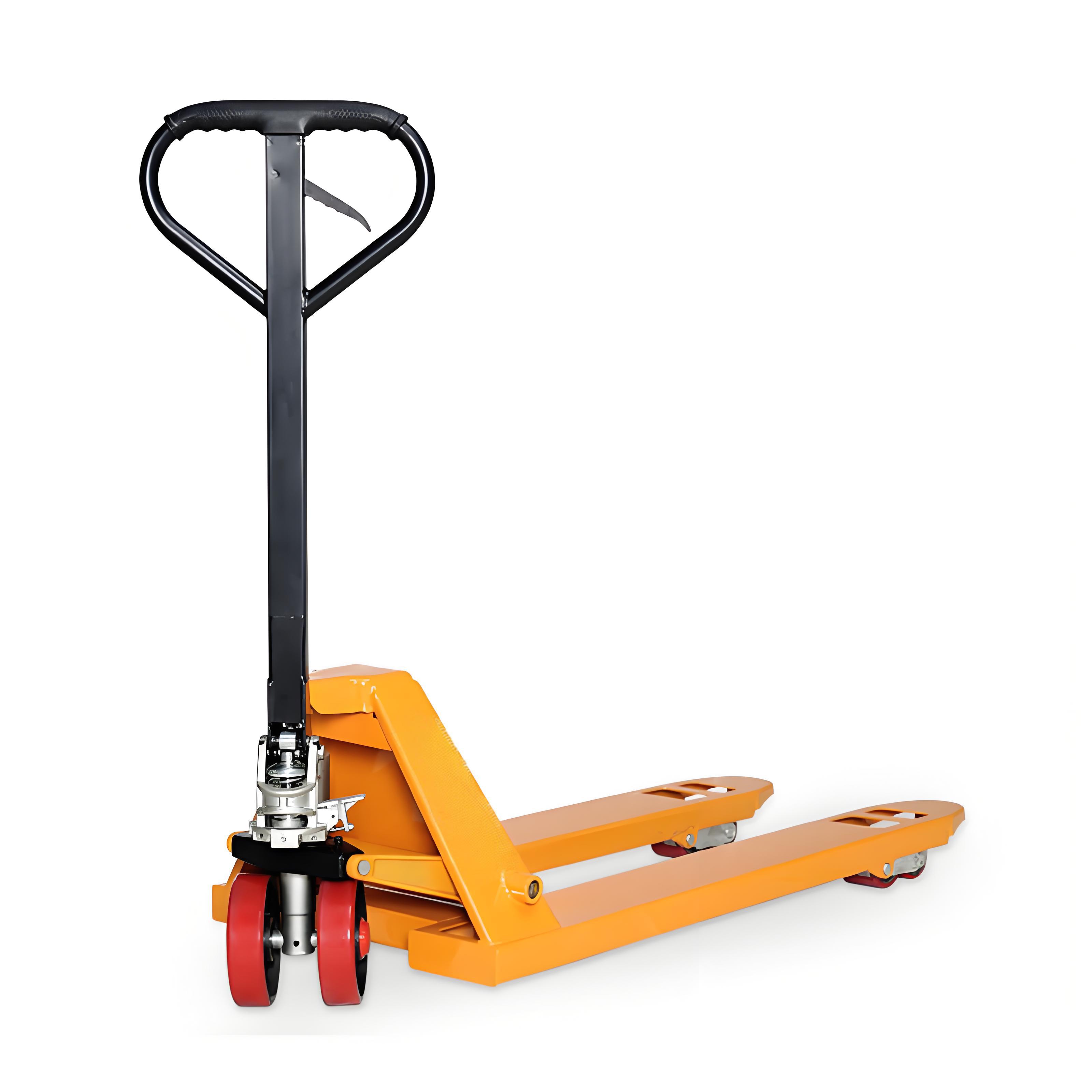

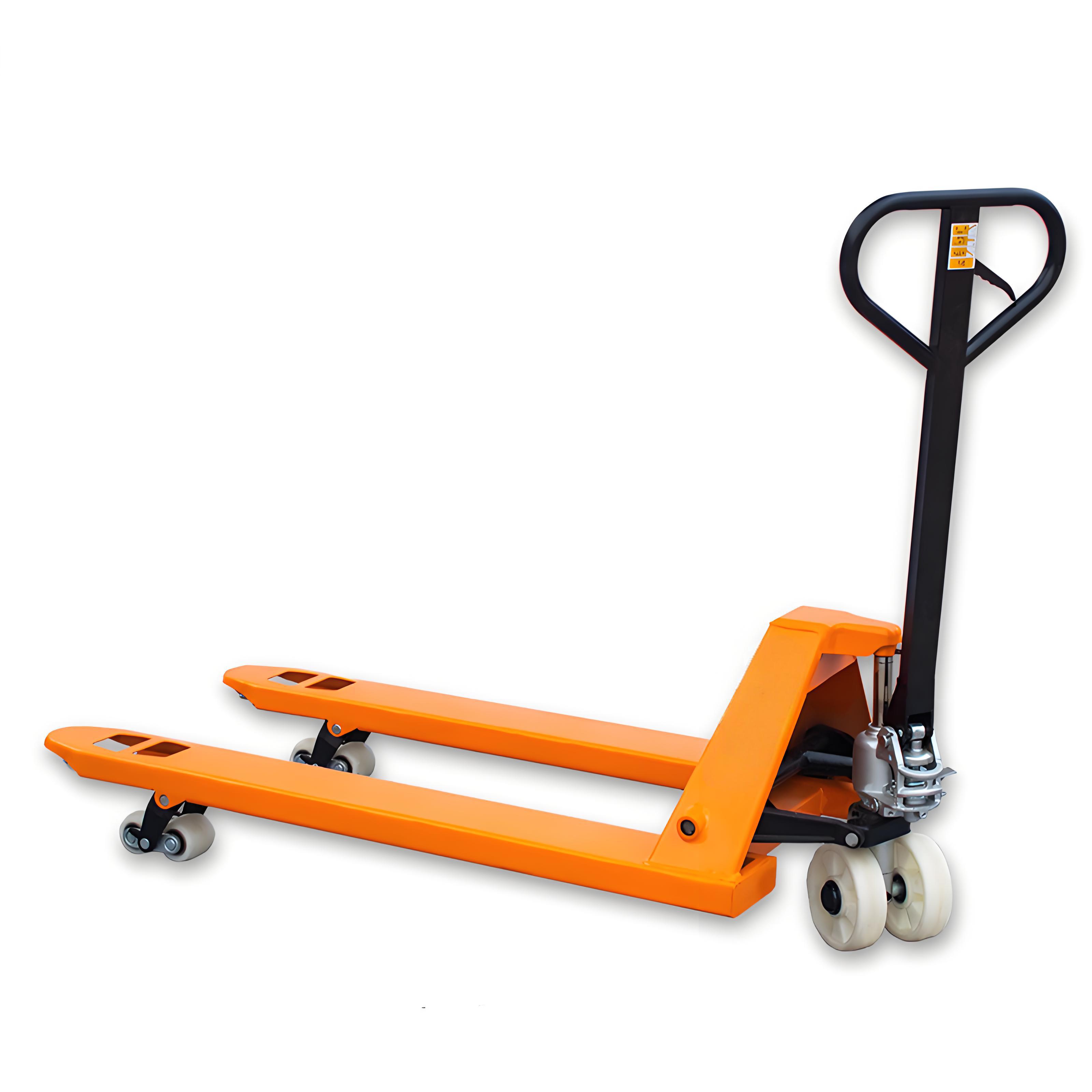

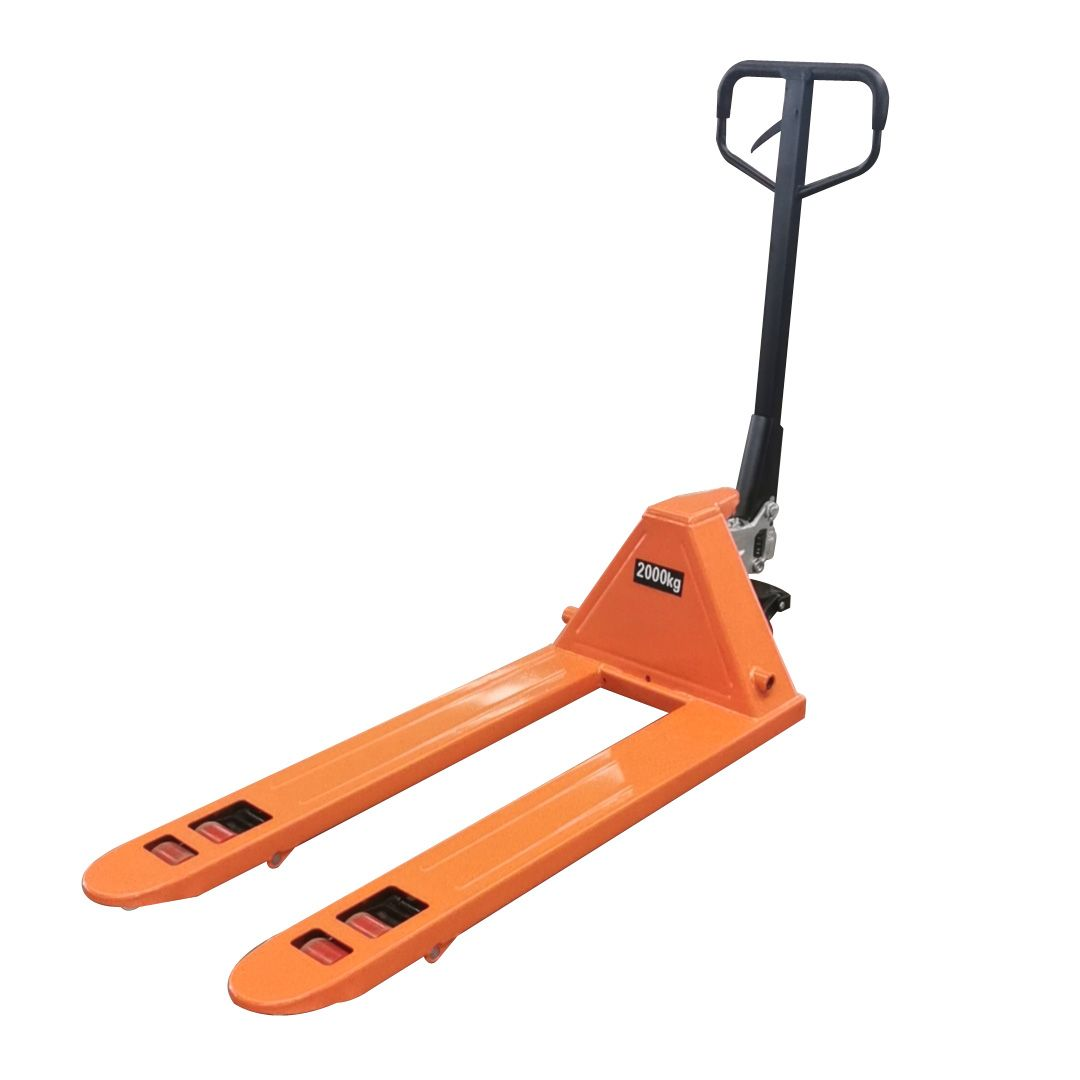

Standard Capacity Manual Pallet Truck Welded Chassis Frame

Standard Capacity Manual Pallet Truck Welded Chassis Frame

The Standard Capacity Manual Pallet Truck Welded Chassis Frame is the core structural component engineered for durability, stability, and reliable performance in material handling equipment. Designed and manufactured by Shanghai ZZ Industrial Company, this welded chassis frame serves as the backbone of manual pallet trucks, ensuring superior load distribution, resistance to deformation, and extended service life even under demanding operational conditions. Ideal for integration into pallet jacks across logistics, warehouse, and industrial environments, this chassis frame is crafted with precision welding and high-strength materials to meet rigorous safety and performance standards.
Send Inquiry


Key Features & Benefits


  • High-Strength Welded Construction – Fabricated from premium-grade steel with reinforced welding at stress points, delivering exceptional rigidity and load-bearing integrity.

  • Optimized Design for Standard Capacity Models – Compatible with 2–3 ton manual pallet trucks, providing a balanced structure for smooth lifting and transport.

  • Corrosion-Resistant Finish – Treated with anti-rust primer and powder-coated surface for enhanced durability and resistance to wear, moisture, and chemicals.

  • Precision Engineered Mounting Points – Designed for seamless compatibility with hydraulic pumps, wheels, forks, and handle systems for easy assembly and reliability.

  • Lightweight Yet Robust – Advanced material selection reduces overall weight without compromising strength, contributing to better maneuverability and energy efficiency.

  • Customizable Design Options – Available in various sizes, hole patterns, and reinforcement layouts to match specific OEM or replacement requirements.


Technical Specifications


Specification Details
Model Type Welded Chassis Frame for Manual Pallet Truck
Compatible Capacity 2 – 3 Tons
Material High-Tensile Steel
Welding Method CO₂ Gas Shielded Welding
Surface Treatment Sandblasted, Anti-Rust Primer, Powder Coated
Coating Thickness 60–80 μm
Standard Color Industrial Yellow (Custom Colors Available)
Mounting Compatibility Fits AC, BF, DF, and DB Pump Systems
Application Warehouse, Logistics, Manufacturing, Distribution Centers
Certifications ISO 9001, CE Standards Compliant


Customization & Support


We offer tailored chassis frame solutions to meet your specific needs:

  • Material Upgrade Options: Q235 Steel, Q345 Alloy Steel

  • Reinforcement Kits for heavy-duty or high-frequency use

  • Custom hole patterns, brackets, and gauge thickness

  • Brand-matched powder coating colors

  • OEM/ODM services with logo engraving or labeling


Why Our Chassis Frame?


  • Engineered for Longevity – Rigorous stress testing and quality control ensure each frame exceeds industry durability standards.

  • Seamless Integration – Designed to fit perfectly with leading pallet truck components, reducing assembly time and improving performance.

  • Global Supply Experience – Trusted by distributors and manufacturers across Europe, North America, and Asia.

  • Technical & After-Sales Support – Comprehensive documentation, CAD drawings, and responsive customer service available.
