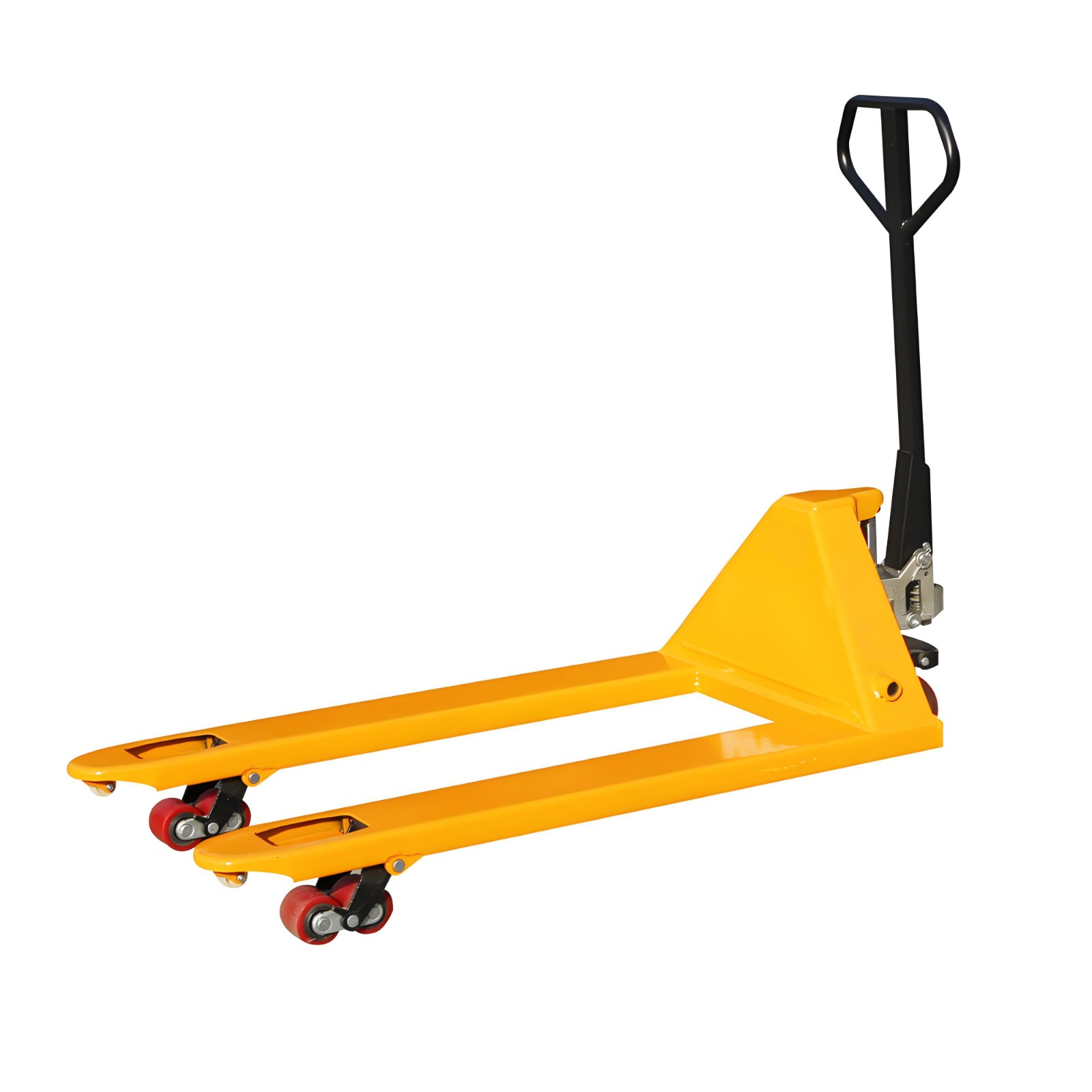

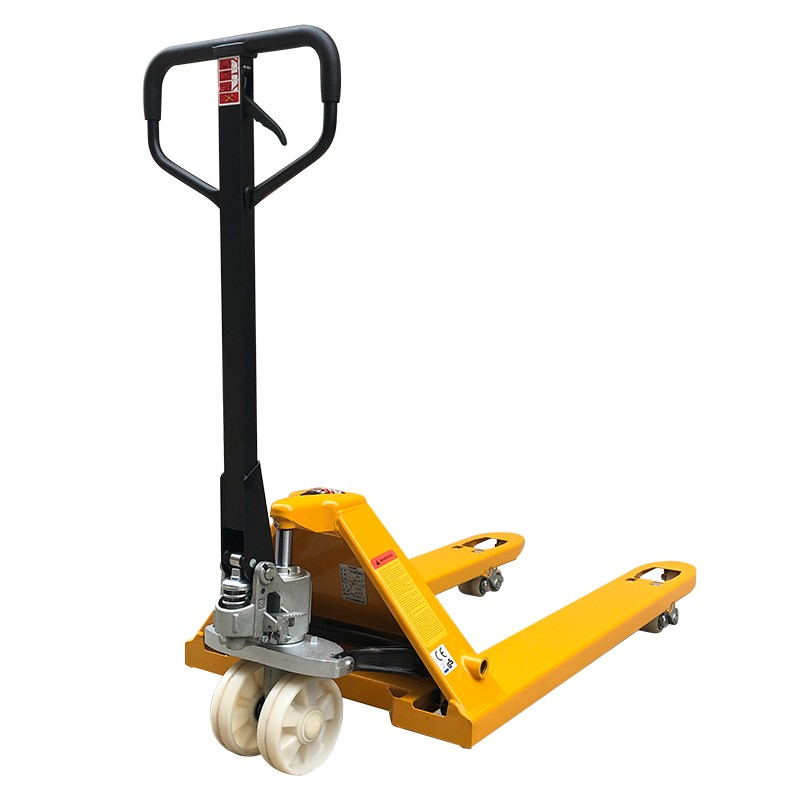

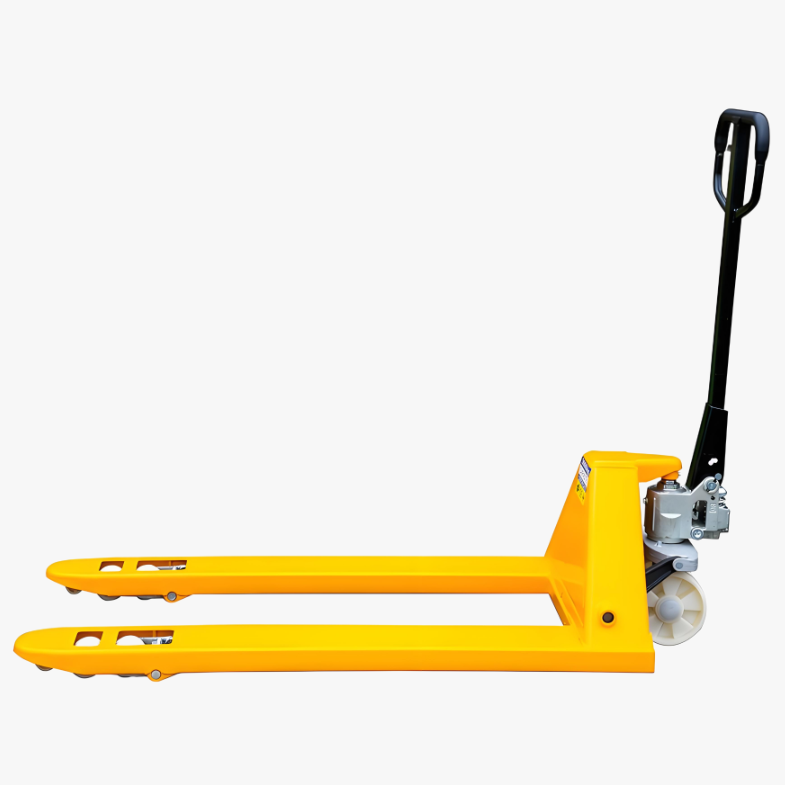

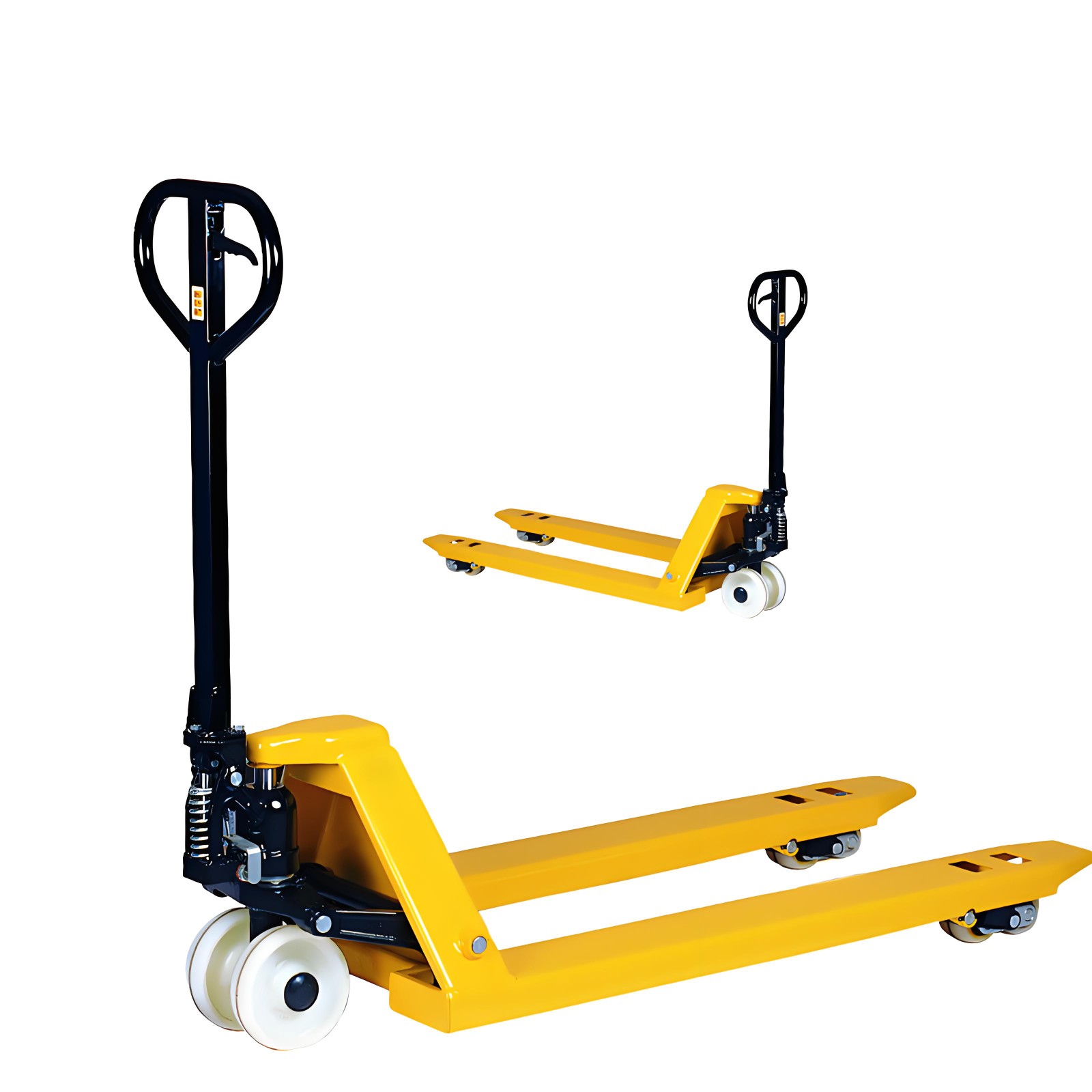

2.5-Ton Capacity Manual Pallet Truck Chassis Frame

The 2.5-Ton Manual Pallet Truck Chassis Frame is the core structural component engineered for durability, stability, and superior load-bearing performance in material handling equipment. Designed and manufactured by a leading Chinese specialist in pallet truck components, this heavy-duty chassis frame serves as the reliable foundation for assembling robust manual pallet jacks capable of handling demanding warehouse, logistics, and industrial applications. Its precision welding and reinforced construction ensure long-term operational safety and efficiency.

Key Advantages

Heavy-Duty Load Capacity – Specifically designed to support 2.5 tons, providing a solid base for safe and stable material transport.
Reinforced Welded Construction – Fabricated from high-grade steel with advanced welding techniques, offering exceptional rigidity and resistance to bending or deformation under stress.
Universal Compatibility – Engineered to seamlessly integrate with various pump systems (AC, BF, DF, etc.) and wheel types (PU, Nylon, Steel), offering flexibility in pallet truck assembly.
Corrosion-Resistant Finish – Treated with anti-rust primer and customizable powder coating, enhancing durability and allowing for brand-specific color matching.
Optimized Design for Stability – The frame geometry ensures balanced weight distribution and smooth interaction with fork arms, improving overall handling and maneuverability.
Easy Assembly & Integration – Precision-drilled holes and standardized mounting points facilitate quick and secure installation of hydraulic pumps, wheels, and handles.

Technical Specifications

Specification	Details
Model	PCT-Frame-2.5T
Load Capacity	2.5 Tons
Material	High-Tensility Steel (Q235B/SS400)
Construction	Fully Welded, Reinforced Cross-Beam
Surface Treatment	Sandblasted, Anti-Rust Primer, Powder Coated
Coating Color	Standard Blue (Customizable upon request)
Compatibility	Fits 2.5T Manual Pallet Jack Assemblies
Mounting Type	Standardized for AC/BF/DF Pump Systems
Quality Certification	ISO 9001, CE Standards Compliant
Application	Warehouse, Logistics, Manufacturing, Retail

Customization & Options

We provide tailored chassis frame solutions to meet diverse OEM and aftermarket needs:

Load Capacity Options: 2T, 2.5T, 3T, 5T available
Material Grades: Standard Steel, Hardened Steel, or Weather-Resistant Coated Steel
Coating & Colors: Full powder coating service with RAL color matching
Design Adjustments: Custom hole patterns, reinforcement plates, or branding labels
Packaging: Bulk or individual packaging, with branding options
OEM/ODM Services: Full design and manufacturing support for customized frame solutions

Manufacturer Highlights

Specialized Component Manufacturer with over 10 years of expertise in pallet truck chassis and structural parts.
Advanced Production Facility equipped with CNC cutting, robotic welding, and automated painting lines.
Stringent Quality Control from raw material inspection to final assembly testing.
Global Export Experience supplying to distributors in Europe, North America, and Southeast Asia.
Technical Support & Documentation provided, including CAD drawings and installation guidelines.
Competitive Pricing & MOQ Flexibility suitable for both small and large-volume orders.

Why Choose Our Chassis Frame?

As a trusted manufacturer in the material handling components industry, we deliver chassis frames built for strength, precision, and longevity. Our 2.5-ton frame is the ideal backbone for any reliable pallet truck, ensuring safety under load and reducing maintenance costs over time. Partner with us for components that keep industry moving.
