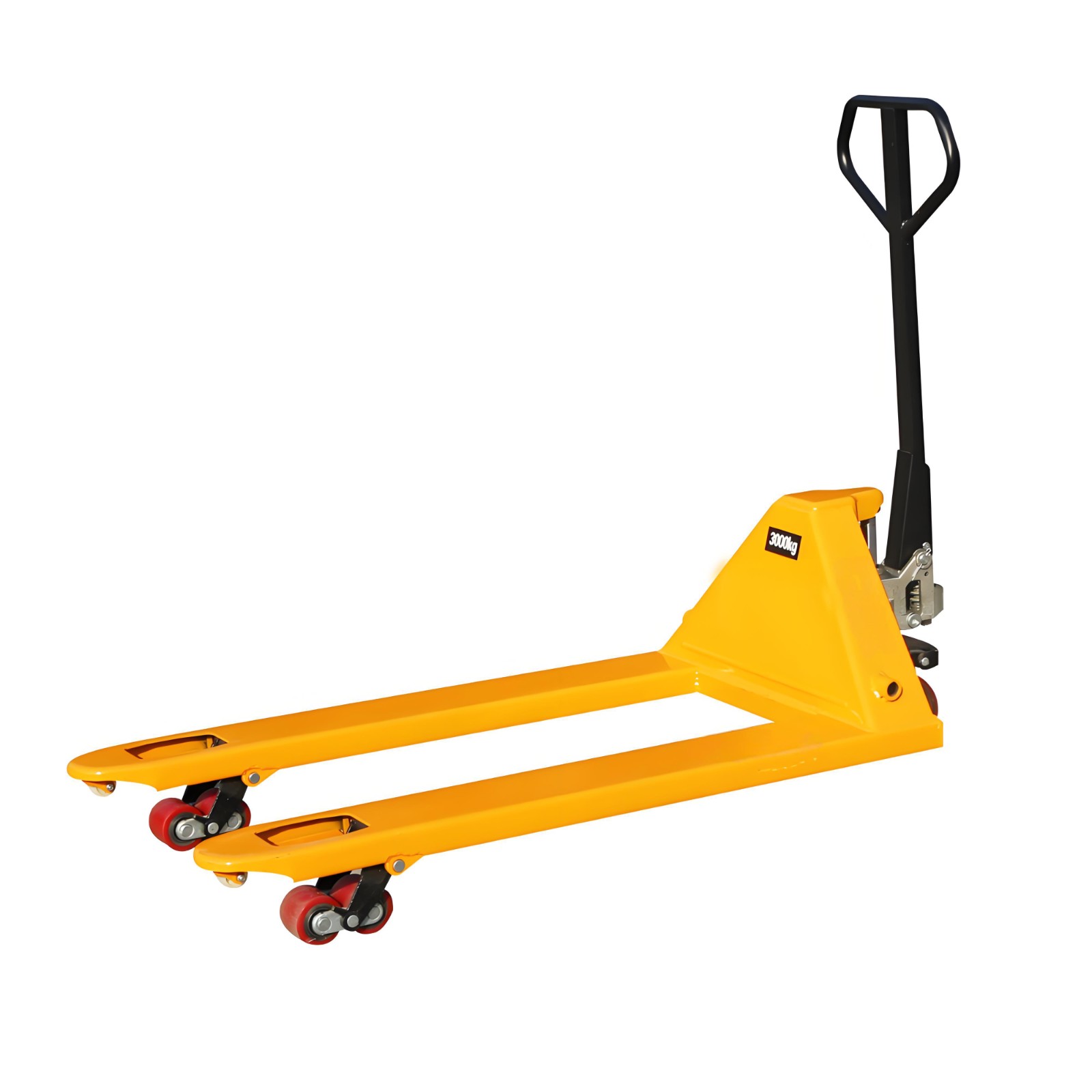

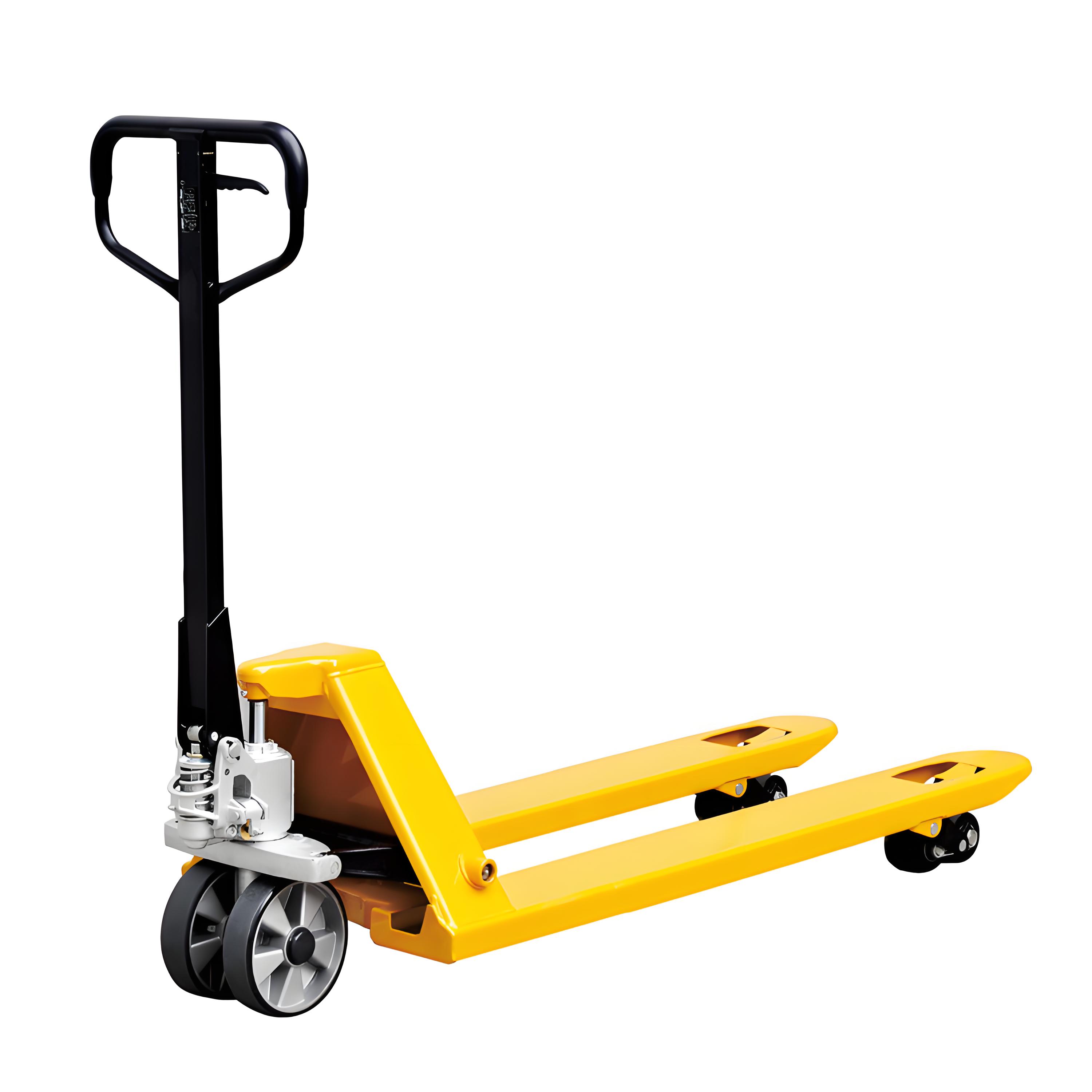

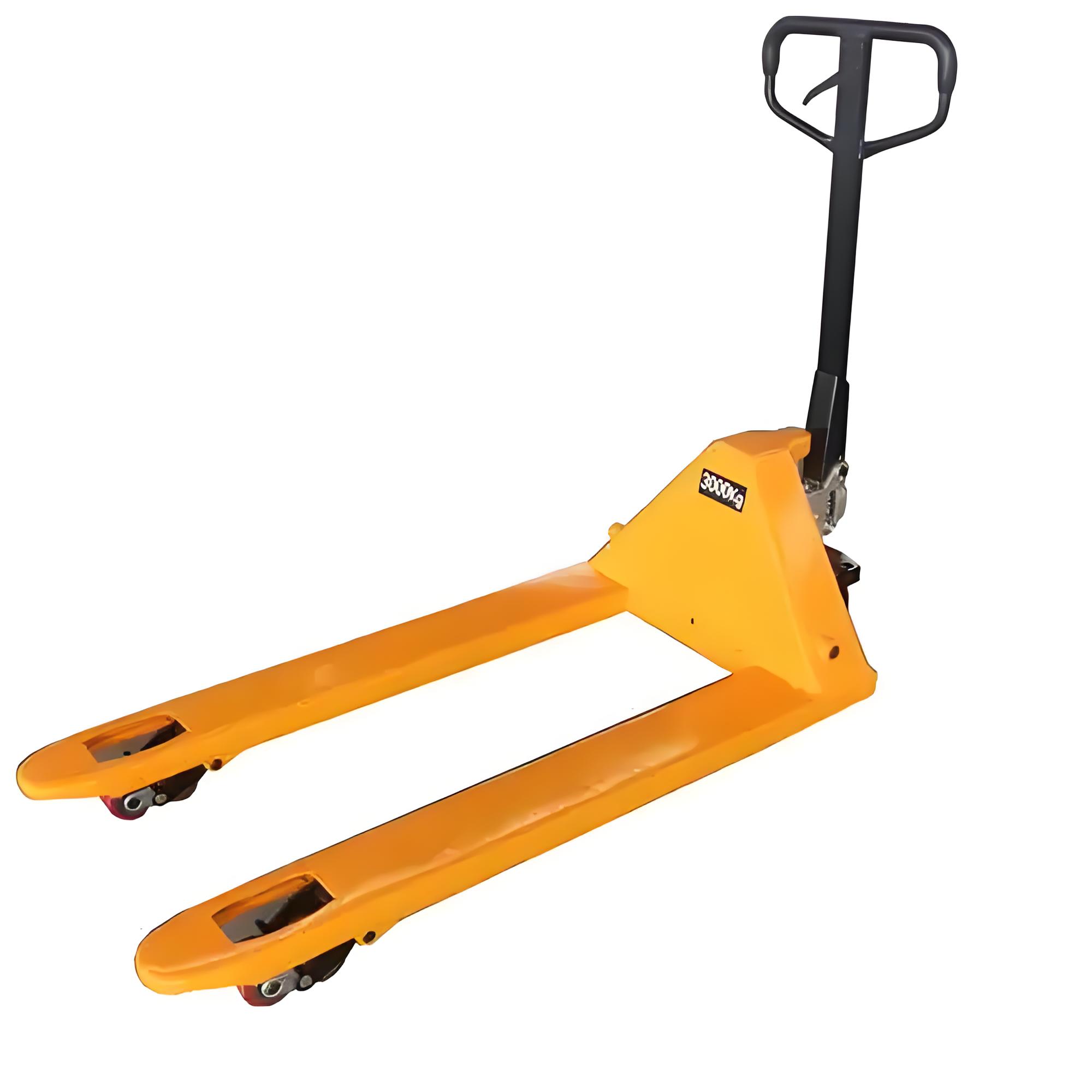

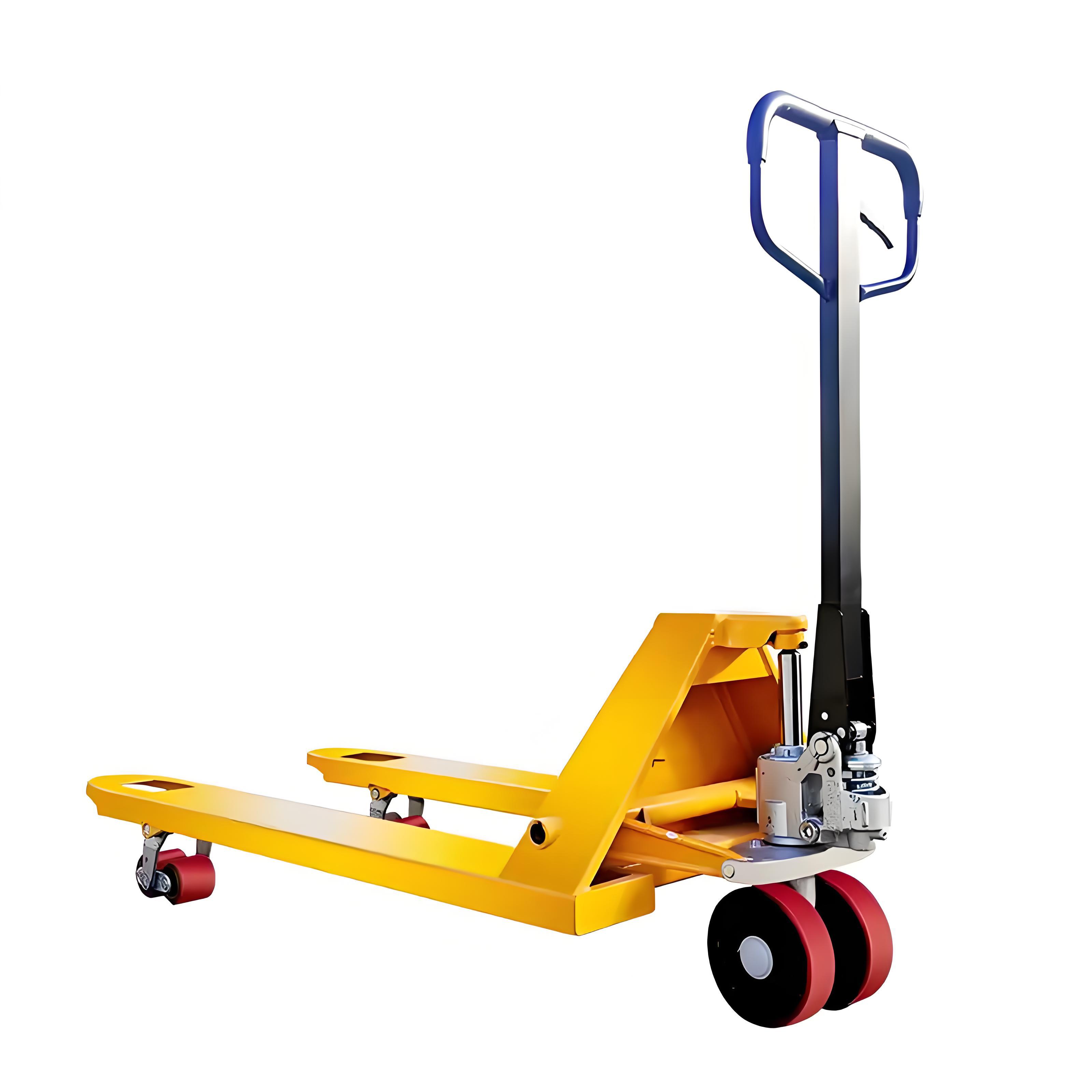

3-Ton High-Capacity Manual Pallet Truck Chassis Frame

3-Ton High-Capacity Manual Pallet Truck Chassis Frame

The 3-Ton High-Capacity Manual Pallet Truck Chassis Frame is a premium structural core engineered for durability, stability, and superior load-bearing performance in demanding material handling environments. Designed as the foundational component for heavy-duty manual pallet jacks, this chassis frame is crafted to integrate seamlessly with various hydraulic systems and wheel assemblies, ensuring reliable operation across warehouses, distribution centers, ports, and industrial facilities. Its reinforced construction offers exceptional strength, making it the ideal choice for businesses requiring robust and long-lasting pallet truck solutions.
Send Inquiry


Key Advantages


  • Heavy-Duty Load Capacity – Engineered to reliably support 3 tons (3,000 kg), providing a solid base for high-weight applications.

  • Reinforced Steel Construction – Fabricated from high-grade, welded steel with reinforced cross-members to prevent bending and deformation.

  • Universal Compatibility – Designed to accommodate multiple pump types (AC, BF, DF, DB) and wheel configurations (PU, nylon, steel).

  • Corrosion-Resistant Finish – Treated with anti-rust primer and powder-coated surface for enhanced durability and aesthetic appeal.

  • Precision Welding & Machining – Ensures perfect alignment and smooth integration with forks, wheels, and hydraulic units.

  • Customizable Mounting Points – Allows flexible adaptation to different pallet jack models and operational requirements.


Technical Specifications


Specification Details
Load Capacity 3 Tons (3000 kg)
Frame Material High-Tensile Welded Steel
Compatible Pump Types AC, BF, DF, DB Series
Fork Mounting Width Adjustable (Standard: 685 mm)
Frame Length Options 1150 mm, 1220 mm, 1500 mm, 1800 mm
Surface Treatment Powder-Coated (Custom Colors Available)
Wheel Compatibility PU, Nylon, or Steel Wheels
Application Heavy-Duty Pallet Jack Assembly
Certifications ISO 9001, CE Standards Compliant


Customization & Adaptability


We offer extensive customization to match your specific pallet truck designs and functional needs:

  • Load Capacity Upgrades: Available in 3T, 5T, and 10T configurations.

  • Material Options: Standard steel or reinforced alloy construction.

  • Coating & Color: Powder-coated finishes in RAL or Pantone colors.

  • Drilling & Welding: Custom hole patterns, brackets, and reinforcement plates.

  • Branding Services: Laser etching, labeling, and OEM branding available.

  • Packaging: Individually wrapped, bulk palletized, or customer-specified packing.


Manufacturer Strengths


  • Specialized Frame Manufacturer with over 15 years of focused expertise in pallet truck chassis production.

  • Advanced Robotic Welding Lines ensuring consistent quality and structural integrity.

  • Collaborative Engineering Support provided for custom designs and integration solutions.

  • Global Export Experience with consistent shipments to Europe, North America, and Southeast Asia.

  • Quality Assurance: Each frame undergoes load testing, weld inspection, and dimensional verification before shipment.


Why Choose Our Chassis Frame?


As a dedicated manufacturer of manual pallet truck components, we understand that the chassis frame is the backbone of every reliable pallet jack. Our 3-ton high-capacity frame is built to endure rigorous daily use, reduce maintenance downtime, and extend the service life of your material handling equipment. By choosing our chassis frame, you invest in a foundation of strength, precision, and operational trust.
