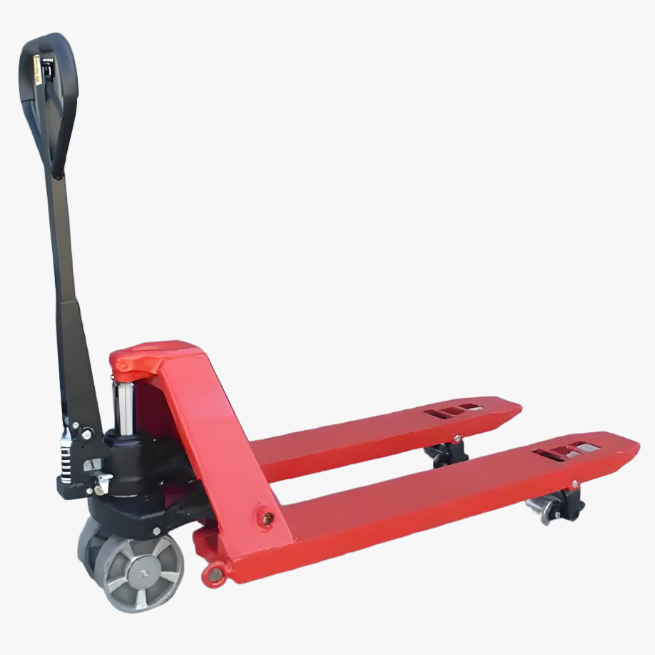

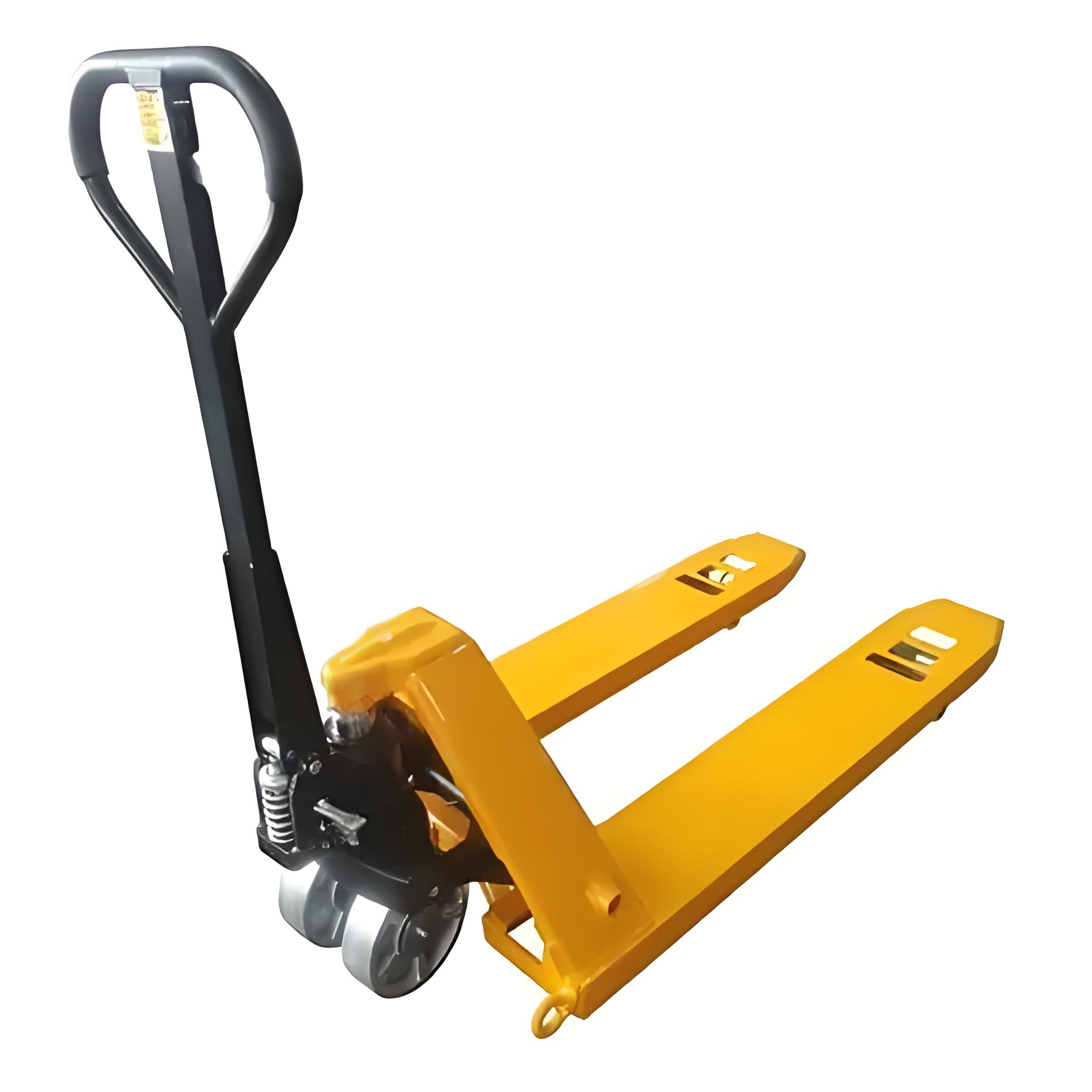

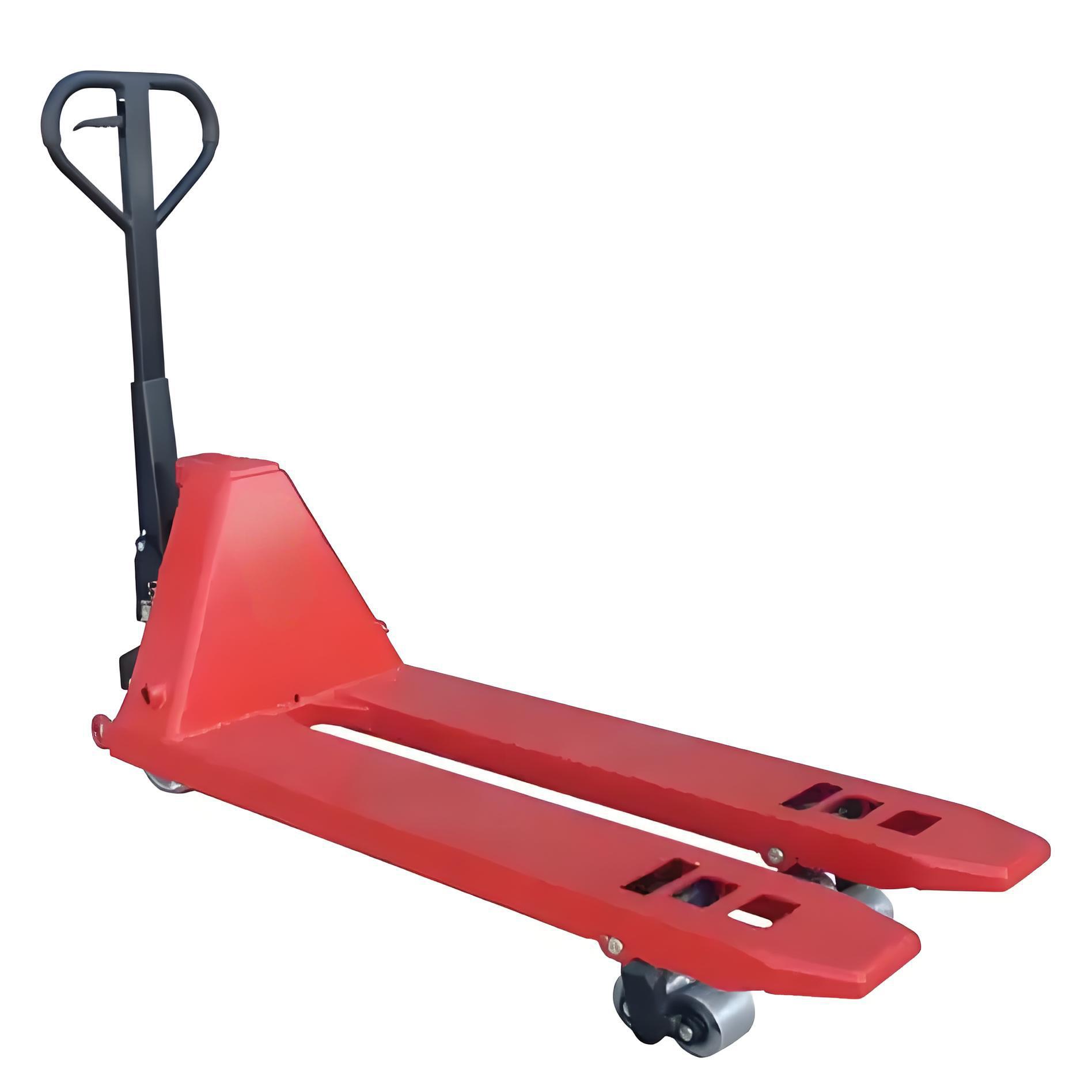

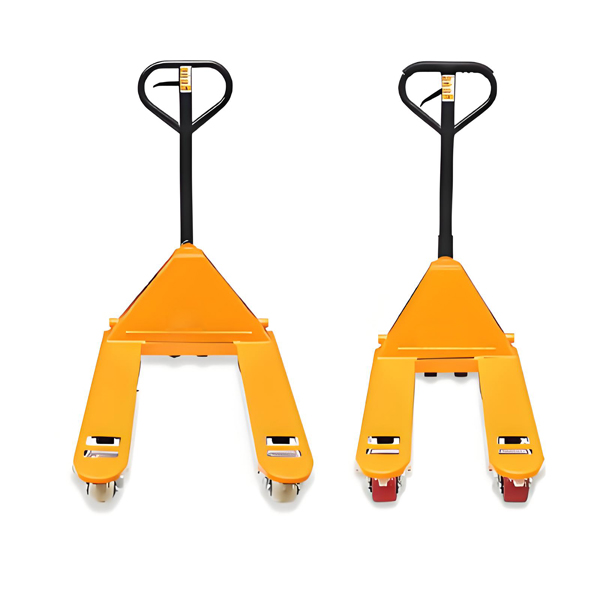

Heavy-Duty Steel Manual Pallet Truck Chassis Frame

Heavy-Duty Steel Manual Pallet Truck Chassis Frame

The Heavy-Duty Steel Manual Pallet Truck Chassis Frame is the structural core of reliable material handling equipment, engineered to deliver unmatched durability, load integrity, and long-term performance. Designed and manufactured by a leading Chinese manual pallet truck components specialist, this chassis frame is crafted from high-grade welded steel to ensure maximum resistance to deformation, impact, and fatigue—even under continuous heavy-duty use. Ideal for integration into warehouse, logistics, and industrial pallet jacks, it provides the solid foundation needed for safe and efficient operations.
Send Inquiry


Key Advantages


  • Ultra-Robust Construction – Made from reinforced welded steel, offering exceptional load-bearing capacity and structural rigidity.

  • Advanced Welding Technology – Utilizes full-penetration welding and robotic seam finishing for consistent strength and reduced stress points.

  • Universal Compatibility – Designed to fit a wide range of manual hydraulic pallet truck models and pump systems (AC, BF, DF, DB types).

  • Anti-Corrosion Protection – Treated with sandblasting and electrostatic powder coating to resist rust, scratches, and chemical exposure.

  • Precision Engineering – CNC-cut and formed to ensure exact dimensions, alignment, and smooth integration with wheels, forks, and hydraulics.

  • Minimal Maintenance – Built to endure harsh environments without requiring frequent repairs or adjustments.


Technical Specifications


Specification Details
Model Heavy-Duty Chassis Frame
Compatible Load Capacity 2T / 2.5T / 3T / 5T / 10T
Material High-Tensility Welded Steel
Steel Thickness 4–6 mm (customizable)
Surface Treatment Sandblasted + Powder-Coated
Coating Color Customizable (RAL/ Pantone supported)
Mounting Type Universal bolt-on design
Frame Style Welded, reinforced cross-braced structure
Quality Standard ISO 9001, CE compliant
Application Manual pallet jacks, hydraulic hand trucks, warehouse trolleys


Customization & Options


We provide tailored chassis frame solutions to match your specific equipment and operational needs:

  • Load Capacity – Available for 2T to 10T pallet trucks

  • Material Grade – Options include Q235, Q345, or galvanized steel

  • Coating Customization – Choose color, thickness, and finish type

  • Mounting Holes & Brackets – Pre-drilled or configured to your assembly requirements

  • Branding & Logos – Laser etching or painted branding available

  • OEM/ODM Services – Full design and manufacturing support from prototype to mass production


Why Choose Our Chassis Frames?


As a trusted manufacturer in manual pallet truck components, we specialize in producing high-performance chassis frames that form the backbone of dependable material handling systems. Our frames are rigorously tested under real-world conditions to ensure they meet the highest standards of safety, durability, and compatibility. With in-house R&D, precision manufacturing, and a commitment to customer-driven design, we deliver frames that enhance the lifespan, stability, and efficiency of your pallet trucks.
